Fairway Mowers
F305
High Capacity Wide Area Reel Mower
Key Features
SureTrac™ System
The SureTrac™ System ensures full-time, four-wheel drive in both forward and reverse, enhancing the machine’s grip and stability on various terrains.
Ease of Service
With an easy access engine service bay in the rear of the machine, the F305 is set up to make downtime minimal.
Enhanced Operator Comfort
The F305 features a deluxe, high back suspension seat and easy-to-use operator controls to give operators the best working conditions.

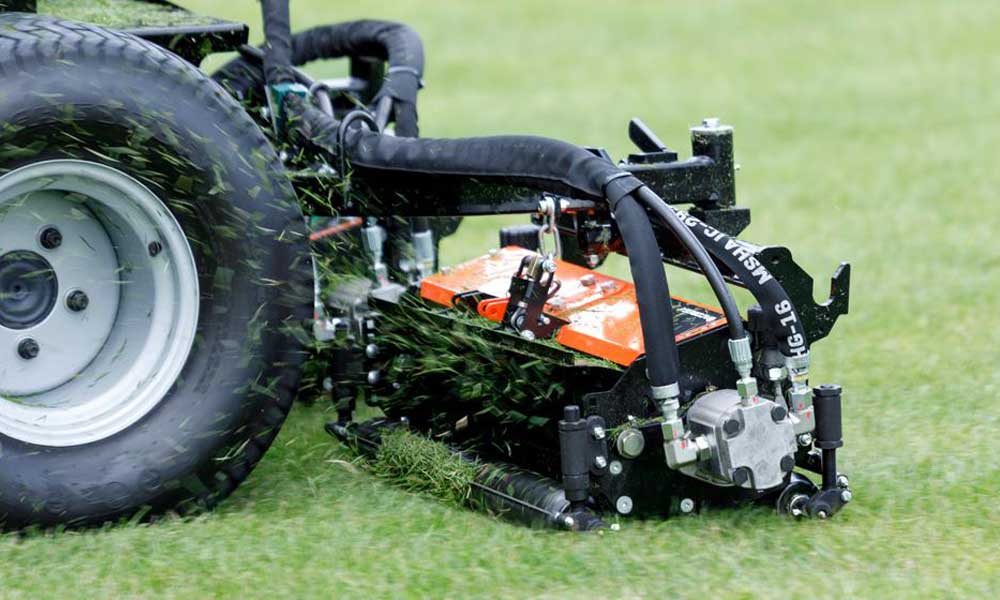

High Cutting Capacity
Capable of covering up to 10.67 acres per hour depending on terrain and mowing speed, this machine is highly efficient for large-scale mowing tasks.

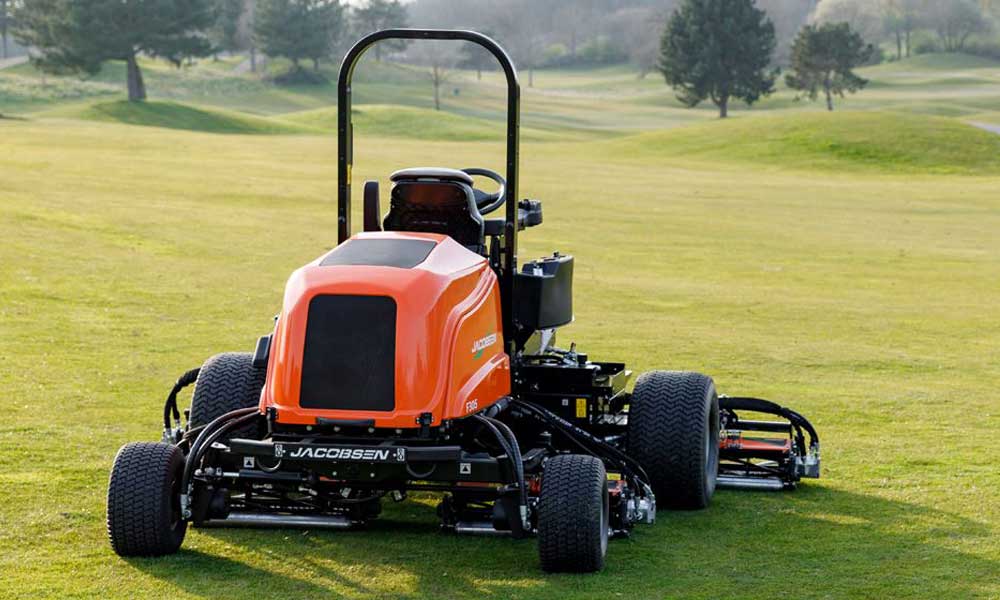

Powerful Engine
Equipped with a 44.9 HP Kubota® Stage V diesel engine, it ensures top-notch performance on every job. With a 9.98-gallon fuel tank, you’ll stay on cut for longer.

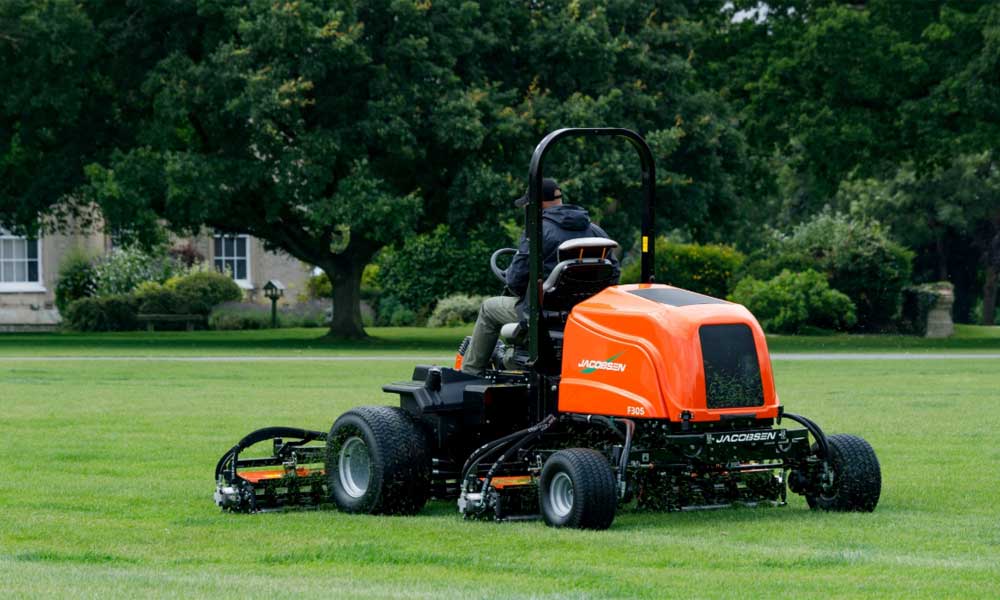

Advanced Hydraulic System
The F305’s hydraulic system is outfitted with a hydraulically adjustable weight transfer to balance enhanced traction and cutting unit ground following.
Wide Area Mower
With a 116-inch cutting width complete with five 26-inch durable cutting units, the F305 has the reach needed for even the largest of cuts. Contact your local dealer and learn more about the F305’s reel and customisation options.

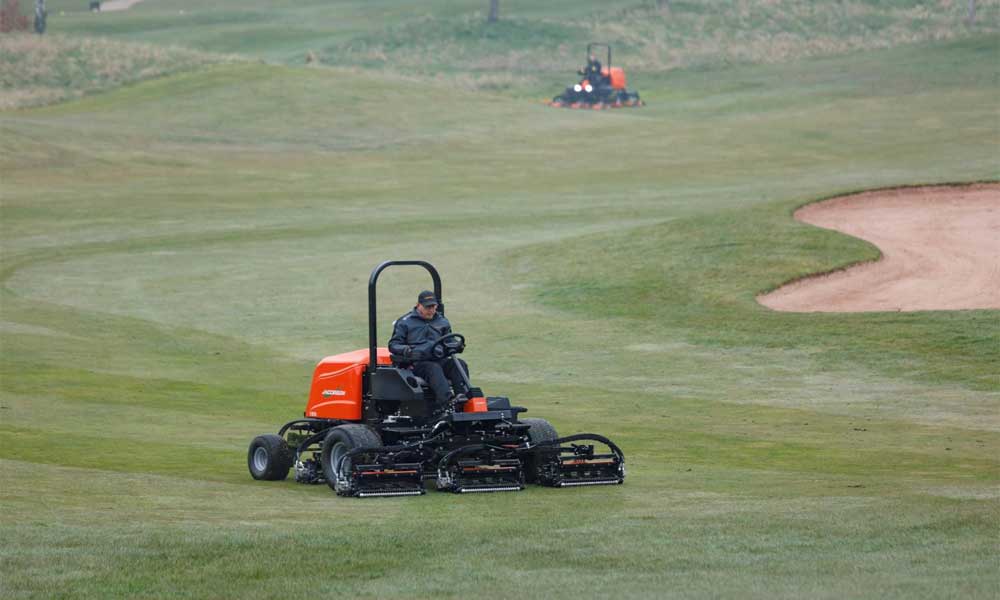

Experience the Signature Cut
Get Jacobsen’s Signature Cut for optimal turf design at every turn. Request a quote to get started on expanding your fleet.
Request a Demo
See our products in action for a closer experience of the amazing capabilities on offer for all your turf requirement.
See the F305 in Action
Technical Specs
Mower Height of Cut: 0.47 – 1.85″ (12 – 47 mm)
Cutting Reels: 26″ (66.4 cm) cylinder, 6.5″ (16.5 cm) diameter floating head cutting unit (5 required)
Mower Engine: 44.9 HP (33 kW) Diesel
Cutting Capacity: 10.67 acres (4.32 hectares) per hr at 7.5 mph (12 kph)
Fuel/Battery Capacity (+Run Time): 9.98 gal. (45.4 L)
Transport Speed: Selectable up to 8.7 mph (14 kph)
Blade Material: Hardened, high manganese carbon steel
Cutting Unit Lift: Wing units can be raised individually for transport
Traction Drive: SureTrac™ Traction System with full-time four-wheel drive in forward and reverse, parallel cross series system
Reel Drive: Fixed displacement hydraulic motors directly coupled to cutting unit
Hydraulic System: 8.31 gal. (37.8 L) capacity; Grade of oil to A.P.I. Classification CE/SF grades SAE 10W-30
Service Brakes: Hydrostatic braking
Parking Brakes: Zero-maintenance wet parking brakes
Steering: Hydrostatic power steering with adjustable tilt steering wheel
Mowing Speed: Selectable up to 7.5 mph (12 kph)
Reverse Speed: Selectable up to 4 mph (6.4 kph)
Weight: 3,450 lbs. (1,565 kg) (excluding fuel)
Length (less catchers): 116″ (2.95 m)
Overall Height (including ROPS): 85″ (2.15 m)
Wheel Base: 65″ (1.65 m)
Transport Width: 99.2″ (2.52 m)
Working Width: 130″ (3.31 m)
