Rough & Trim Mowers
AR321
Contour Rotary Trim Mower
Key Features

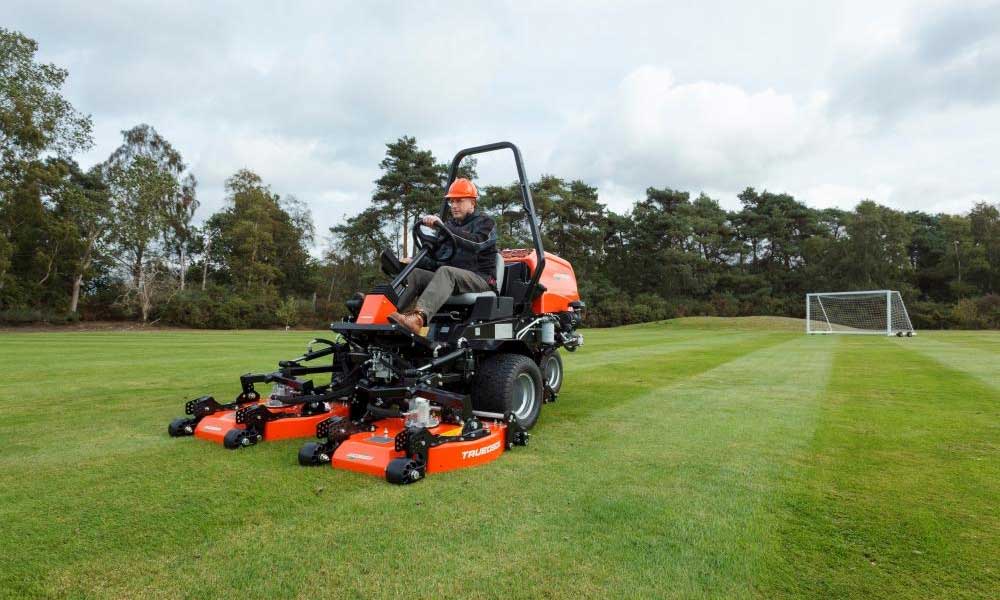

Contour Following
The AR321 is equipped with contour-following capabilities that allows the cutting units to independently float and follow the undulations of the terrain.
User-Friendly Adjustments
Adjustments to the cutting height and other machine setting can be made quickly and easily, improving overall productivity.

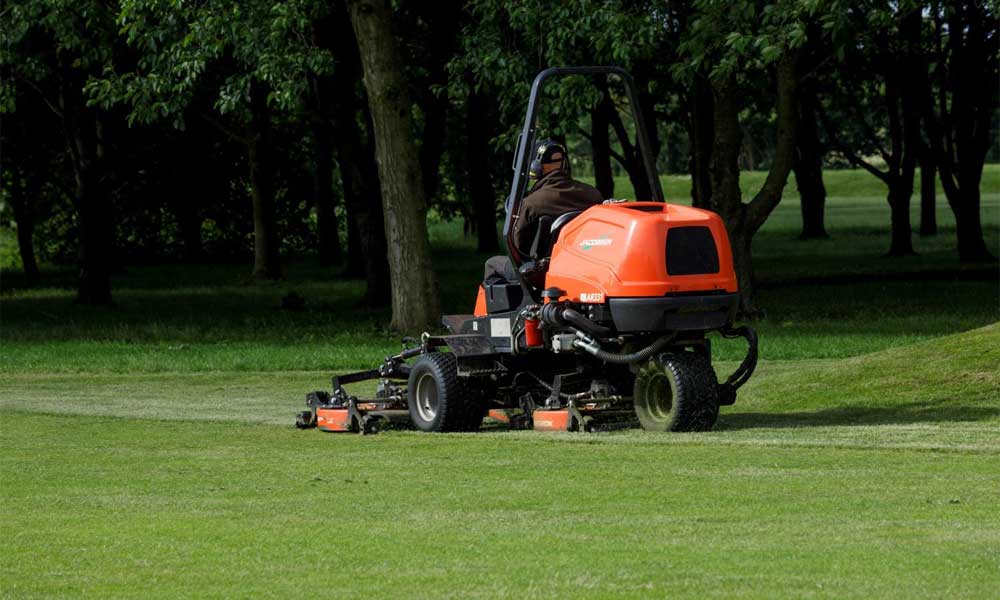

Ease of Maintenance
With wet parking brakes that are completely maintenance-free, the AR321 eliminates the need for regular brake maintenance and extends the overall lifespan, reducing the overall cost of ownership.
Traction System
The AR321 features a 3-wheel drive traction system, ensuring complete stability and control even on steep slopes.

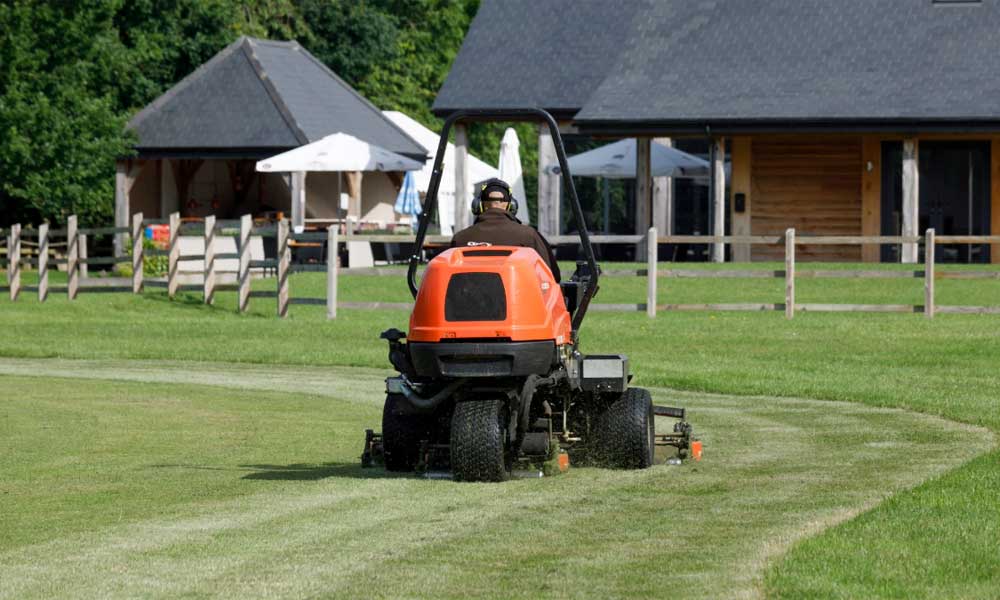

Reliable Diesel Engine
The 24.8HP diesel engine adds even more reliability and efficiency to the AR321. It provides consistent power and emphasises fuel efficiency to handle tough mowing conditions without compromising performance.
Learn More About The AR321
Explore more about the technology and reels that keep the AR321 on cut for every job. Watch to learn more about the specifics of this machine.

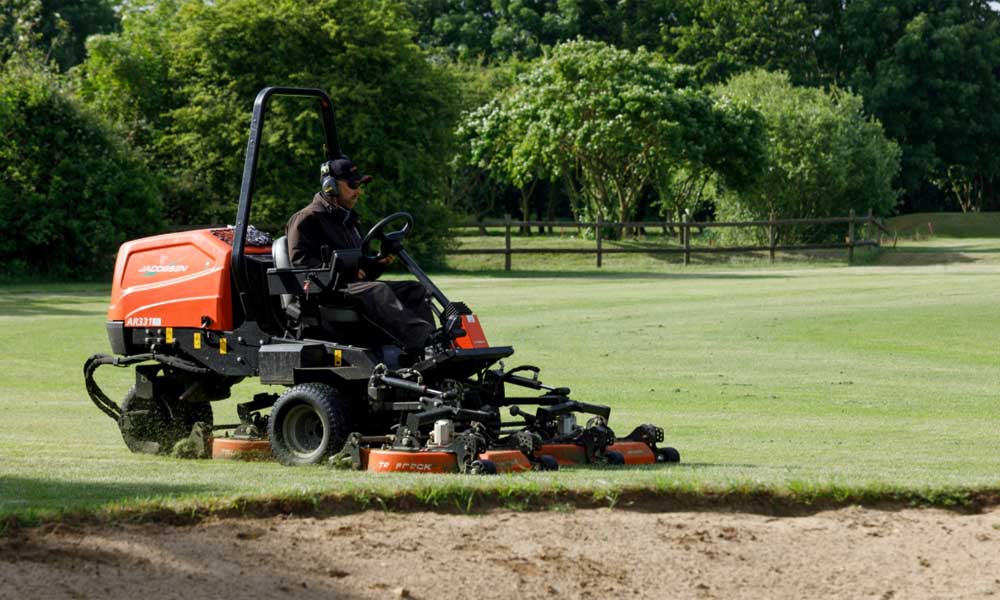

Cutting Capabilities
The AR321 has a cutting width of 72 inches (1.8 meters) and a cut height between 0.75 to 3.5 inches (19 to 88 mm). A wide range of options give you the customisation to cut exactly how your turf needs.

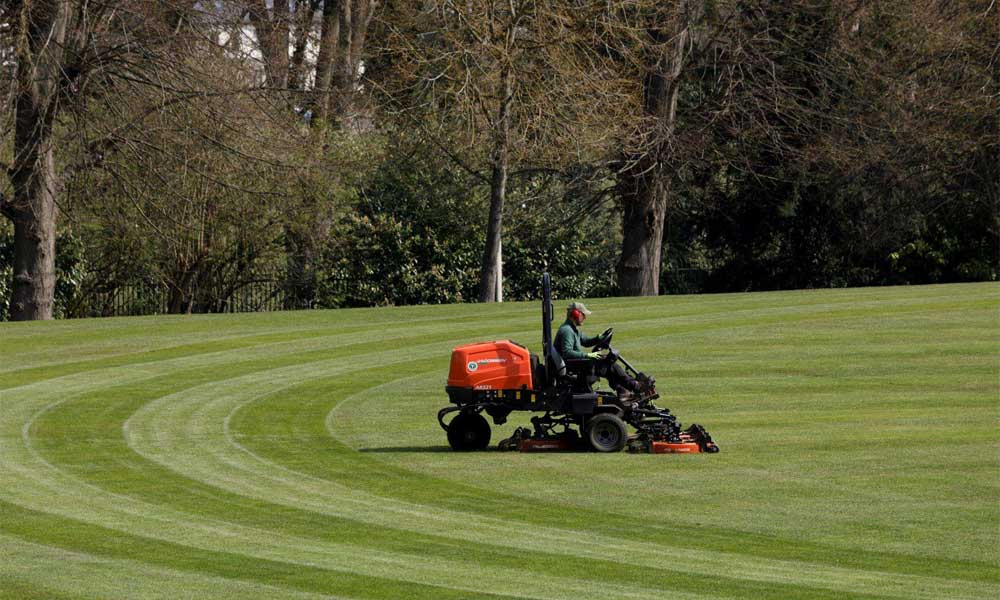

Outstanding Rotary Cut Quality
Take your presentation to the next level.
Request a Demo
See our products in action for a closer experience of the amazing capabilities on offer for all your turf requirement.

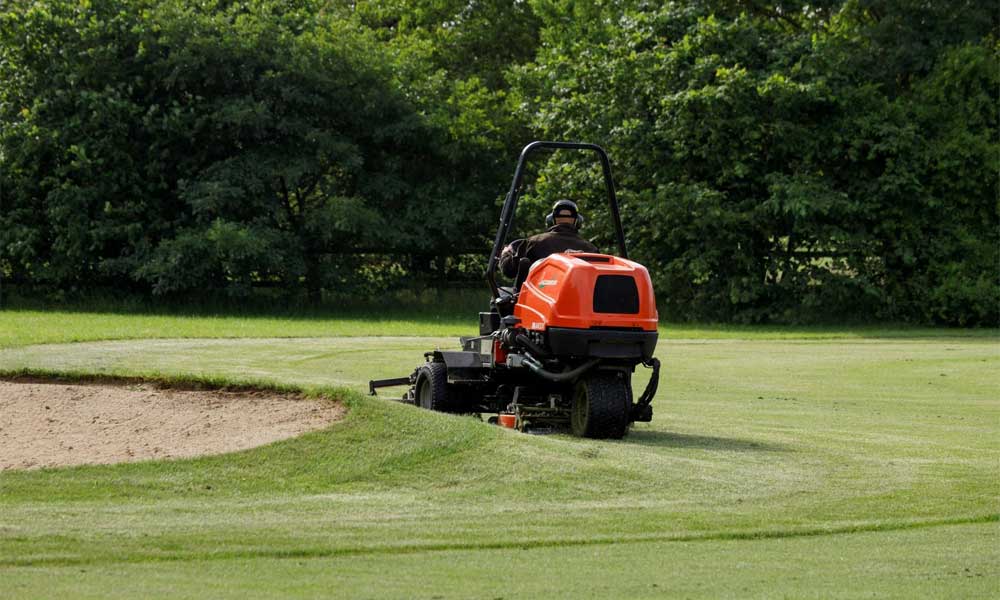

See the AR321 in Action
Technical Specs
Mower Cutting Width: 72″ (1.8 m)
Mower Height of Cut: 0.75 – 3.5″ (19 – 88 mm)
Mower Engine: 24.8 HP (18.6 kW) Diesel
Cutting Capacity: 4.5 acres/hr at 6 mph (1.83 ha/hr at 10 kph)
Transport Speed: 8.7 mph (14 kph)
Fuel/Battery Capacity (+Run Time): 7.6 gal. (28.7 L)
Number and Size: 3 x 27″ (68.58 cm) TrueDeck rotary cutting units
Blade Material: Hardened, high manganese carbon steel
Deck Lift/Lower: Armrest mounted switch
Weight Transfer: Adjustable hydraulic, electronically activated operator control
Deck Construction: 9-gauge, stamped modular deck construction
Traction Drive: Parallel-series “on demand” 3WD
Deck Drive: Fixed displacement hydraulic
Hydraulic System: 8.7 gal. (33 L) capacity, full flow filtration (10 micron filter); GreensCare biodegradable oil
Service Brakes: Dynamic braking through hydrostatic drive
Parking Brakes: Service-free electronic wet disc
Steering: Hydraulic power steering with tilt wheel
Mowing Speed: 6.2 mph (10 kph)
Reverse Speed: 3.7 mph (6 kph)
Weight: 1,986 lbs. (901 kg)
Length: 122″ (3.10 m)
Height (Rops Up): 82″ (2.06 m)
Wheel Base: 61″ (1.54 m)
Transport Width: 77″ (1.96 m)
Working Width: 77″ (1.95 m)
Fluid Capacities: Hydraulic System and Capacity: 8.7 gal. (33 L) capacity, full flow filtration (10 micron filter); GreensCare biodegradable oil
