HR700
Powerful Large Area Rotary Mower
Key Features
Tilt Sensory Technology (TST)
Automatic detection with Jacobsen’s Tilt Sensory Technology continuously monitors the angle of the machine and provides warnings if it shifts beyond a safe threshold.

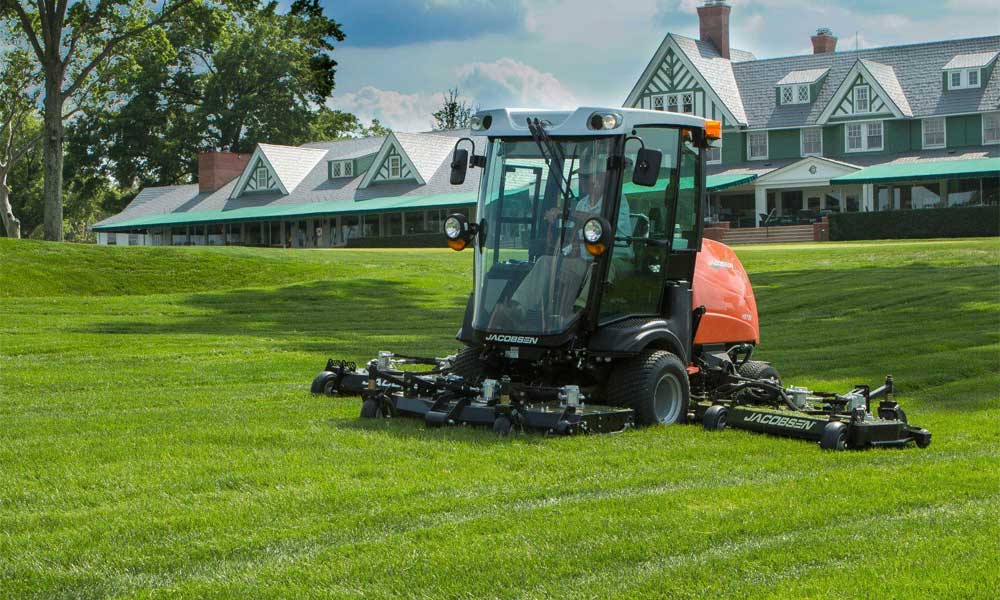

Operator Comfort
Designed for long hours of operation, this machine features a fully adjustable high-back suspension seat and unobstructed, armrest mounted controls.

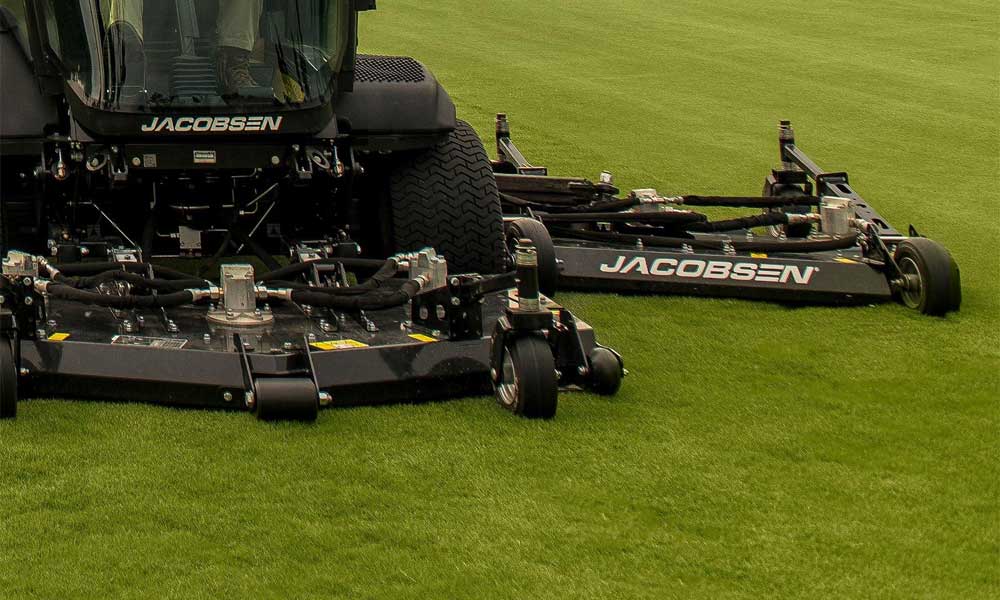

Ease of Maintenance
Experience unobstructed accessibility with the HR700’s easy-access hood and removable side panels.

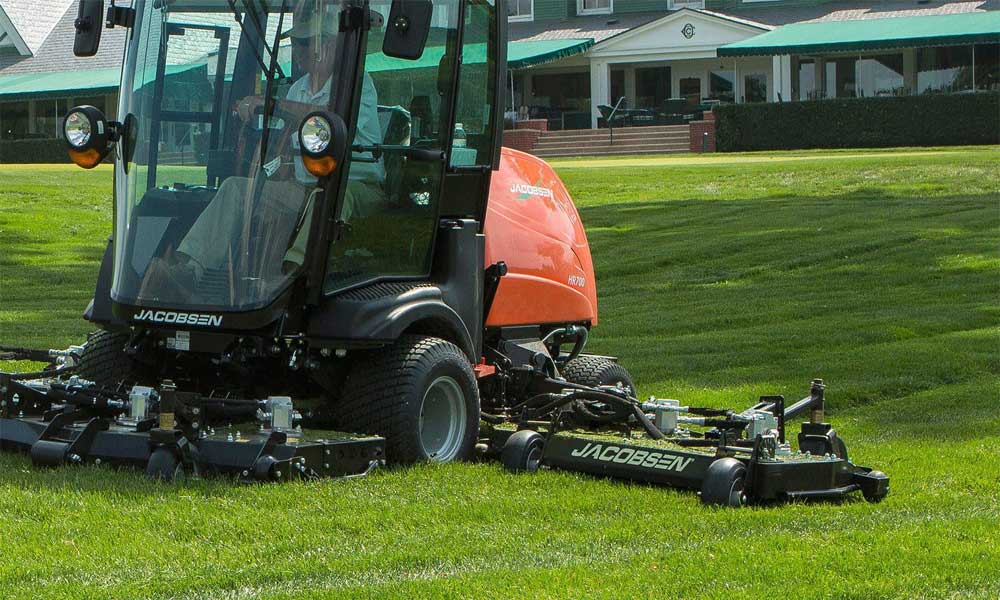

AdaptiCut™
The HR700’s AdaptiCut system automatically adjusts the mower’s speed to match available power and maintain a uniform cut.

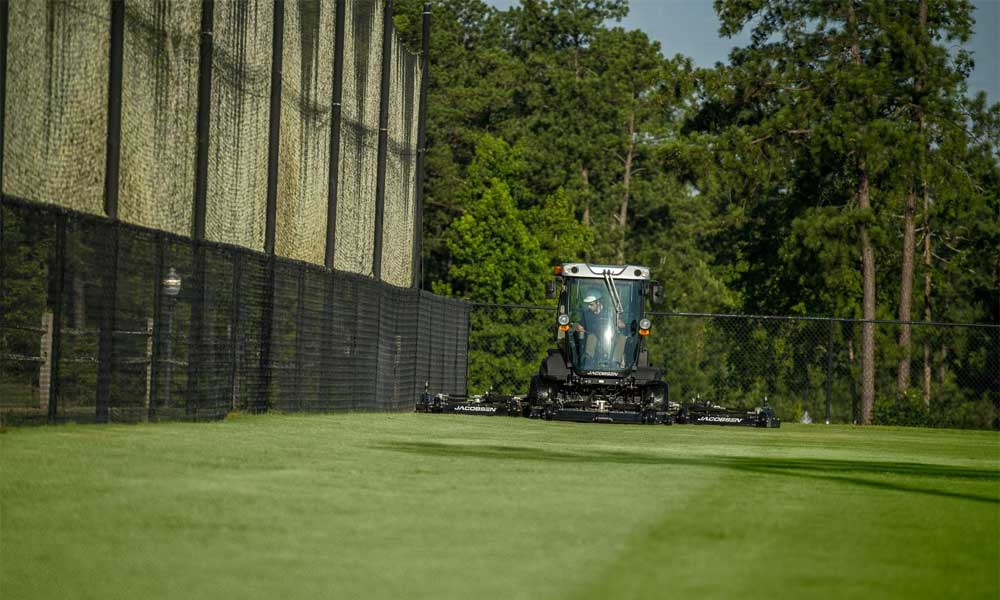

In A Class of Its Own
The HR700 provides a quality cut, with the widest mowing width on the narrowest transport. Confidence on the cut is key to turf care, so request a quote and start your Jacobsen journey today.
Request a Demo
See our products in action for a closer experience of the amazing capabilities on offer for all your turf requirement.
See the HR700 in Action
Technical Specs
Mower Cutting Width: 168″ (4.27 m)
Mower Height of Cut: 1 – 4.5″ (25 – 114 mm) in 0.25″ (6.4 mm) increments
Mower Engine: Kubota 65.2 HP (48.6 kW) Turbo Diesel
Cutting Capacity: 17 acres/hr at 10 mph (6.9 ha/hr at 16 kph)
Transport Speed: 15.5 mph (25 kph)
Fuel/Battery Capacity (+Run Time): 20.4 gal. (77.1 L)
Number and Size: 1 x 60″ (152 cm) front deck; 2 x 60″ (152 cm) wing units
Blade Material: MARBAIN® boron alloy steel
Deck Lift/Lower: Individual via fingertip operated joysticks
Weight Transfer: On demand electrically operated hydraulic weight transfer system
Deck Construction: 11 gauge (3 mm) Strenx, high strength steel shell
Traction Drive: Hydrostatic closed loop parallel-cross-series SureTrac™ system
Deck Drive: Nine individual hydraulic motors with self lubricating integral bearings
Hydraulic System: 13.3 gal. (50.2 L) reservoir with 10 micron remote charge filters and suction screening at tank. Oil cooler in side by side radiator
Service Brakes: Dynamic through hydrostatic traction system
Parking Brakes: Automatic wet parking brakes integrated into wheel motors
Steering: Power Steering
Mowing Speed: 10 mph (16.4 kph)
Reverse Speed: 4 mph (6.4 kph)
Tires: Front Tires: 26 x 12-12 tubeless 8 ply. Rear Tires: 20 x 10-8 tubeless 6 ply
Weight: 4023 lbs. (1825 kg), 4479 lbs. (2032 kg) with cab
Length: 143″ (3.62 m) front deck down
Height (Rops Up): 83″ (2.1 m)
Wheel Base: 64″ (1.65 m)
Transport Width: 65″ (1.67 m)
Working Width: 176″ (4.48 m)
Fluid Capacities: Coolant System and Capacity: Side-by-side radiator/hydraulic oil cooler; pressurised; 2 gal. (7.6 L) capacity, 8.5 fins per inch
