Rough & Trim Mowers
AR331
Side-Shifting Contour Rotary Mower
Key Features
Enhanced Manoeuvrability With Adaptishift Technology
With the ability to side-shift the mower decks laterally up to 12 inches, this machine is unmatched in cutting around obstacles, eliminating the need for multiple passes.
Ease of Maintenance
With wet parking brakes that are completely maintenance-free, the AR331 eliminates the need for regular brake maintenance and extends the overall lifespan, reducing the overall cost of ownership.
3WD Traction System
The power is distributed to three wheels on the AR331, allowing it to maintain better traction, especially on slopes and wet grass.

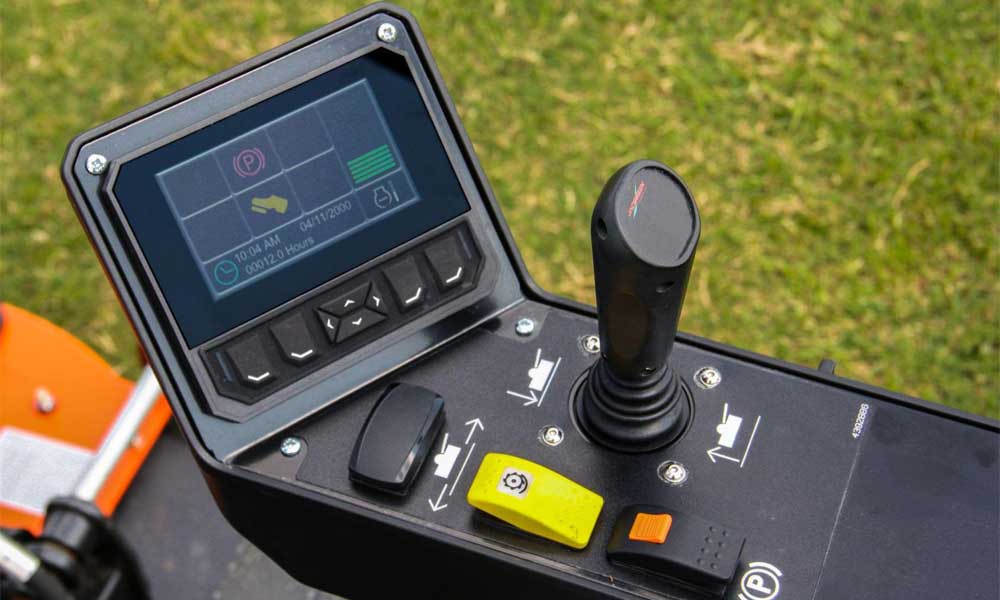

Intuitive On-Board Diagnostics
This valuable tool allows the operator to continuously monitor the mower’s performance, alerting them of any potential problems in real time.

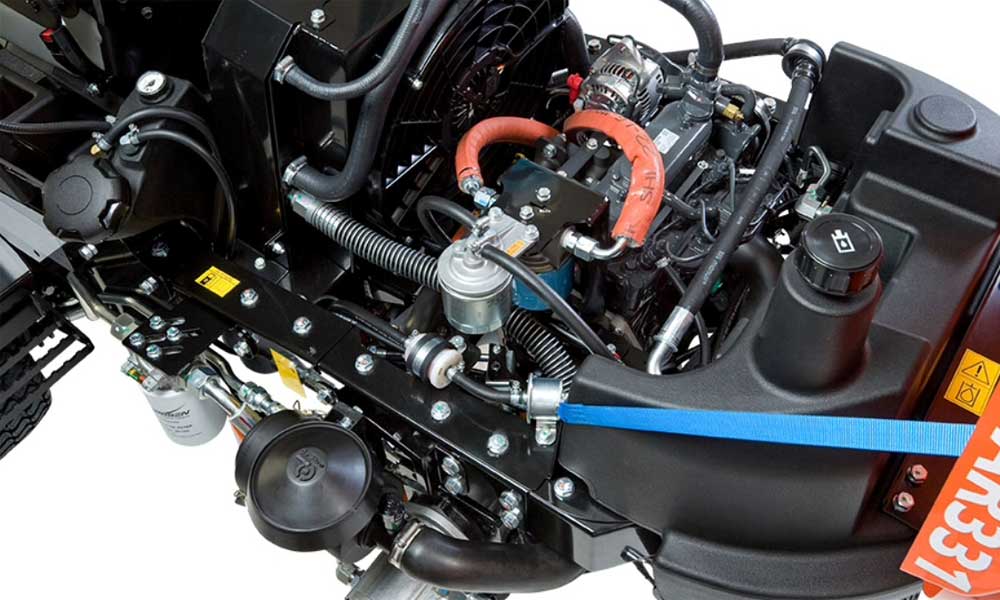

Trustworthy Engine
The AR331 is powered by a reliable 24.8HP (18.6kW) diesel engine. These engines are built for easy maintenance, with accessible and service friendly components.
Quick Deck Adjustments
Operators can easily fine-tune the mower to achieve the desired cut height and quality, ensuring a consistent and professional cut. The system has been designed in a user-friendly way so there is no need for specialised tools or extensive training.
Operator Comfort
With an adjustable mechanical suspension seat, hydraulic power steering, and a tilt steering wheel, the AR331 is not only efficient but comfortable, making it ideal for extended use in various terrains.

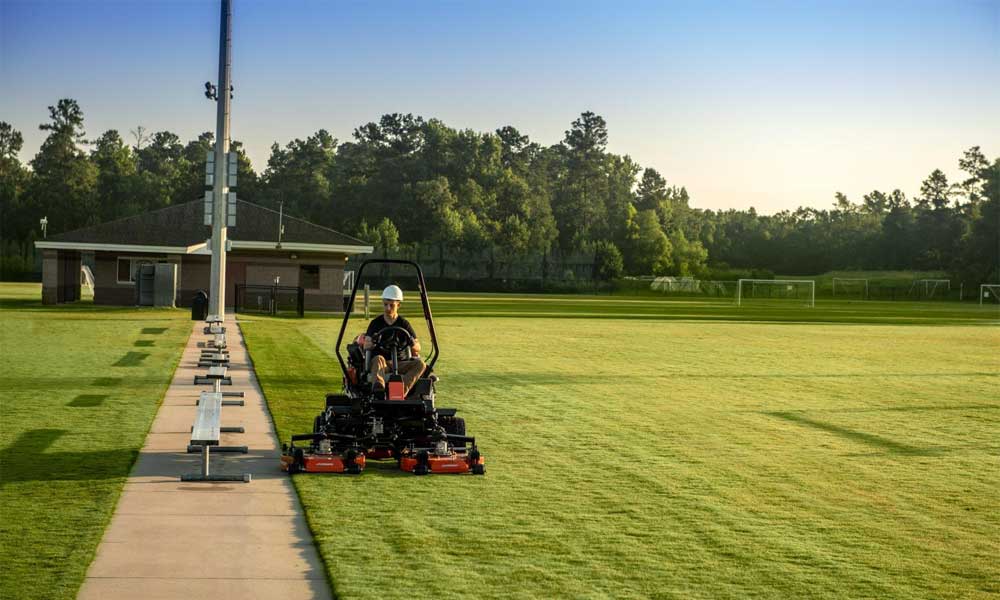

Power, Strength and Precision at Your Command
The AR331 is highly versatile with its ability to cut on any terrain and around any obstacle with the help of innovative Adaptishift Technology. Find out more by contacting your nearest dealer.
Request a Demo
See our products in action for a closer experience of the amazing capabilities on offer for all your turf requirement.

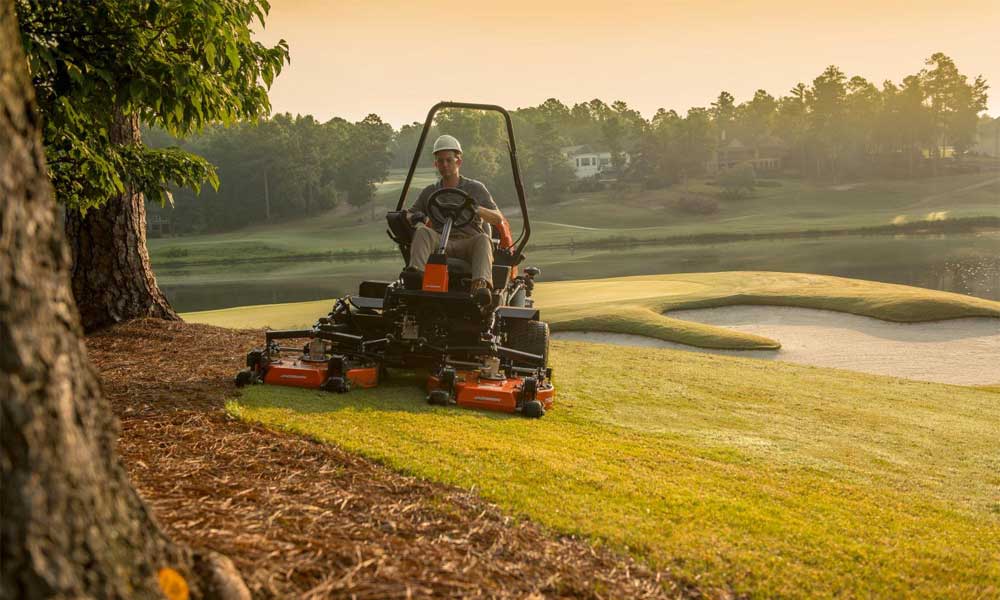

See the AR331 in Action
Technical Specs
Mower Cutting Width: 72″ (1.8 m) featuring ADAPTISHIFT™ with up to 12″ (0.3 m) of offset Cutting Width
Mower Height of Cut: 0.75 – 3.5″ (19 – 88 mm)
Mower Engine: 24.8 HP (18.6 kW) Diesel
Cutting Capacity: 4.5 acres/hr at 6 mph (1.83 ha/hr at 10 kph)
Transport Speed: 8.7 mph (14 kph)
Fuel/Battery Capacity (+Run Time): 7.6 gal. (28.7 L)
Number and Size: 3 x 27″ (68.58 cm) TrueDeck rotary cutting units
Blade Material: Hardened, carbon steel alloy
Deck Lift/Lower: Armrest mounted joystick
Weight Transfer: Adjustable hydraulic, electronically activated operator control
Deck Construction: 9-gauge, stamped modular deck construction
Traction Drive: Parallel-series “on demand” 3WD
Deck Drive: Fixed displacement hydraulic
Hydraulic System: 8.7 gal. (33 L) capacity, full flow filtration (10 micron filter); GreensCare biodegradable oil.
Service Brakes: Dynamic braking through hydrostatic drive
Parking Brakes: Service-free electronic wet disc
Steering: Hydraulic power steering with tilt wheel
Mowing Speed: 6.2 mph (10 kph)
Reverse Speed: 3.7 mph (6 kph)
Weight: 2004 lbs. (909 kg)
Length: 122″ (3.10 m)
Height (Rops Up): 82″ (2.06 m)
Wheel Base: 61″ (1.54 m)
Transport Width: 77″ (1.96 m)
Working Width: 77″ (1.95 m)
Fluid Capacities: Hydraulic System and Capacity: 8.7 gal., full flow filtration (10 micron filter); GreensCare biodegradable oil
