Fairway Mowers
F407
Super-Wide Ride-On Reel Mower
Key Features

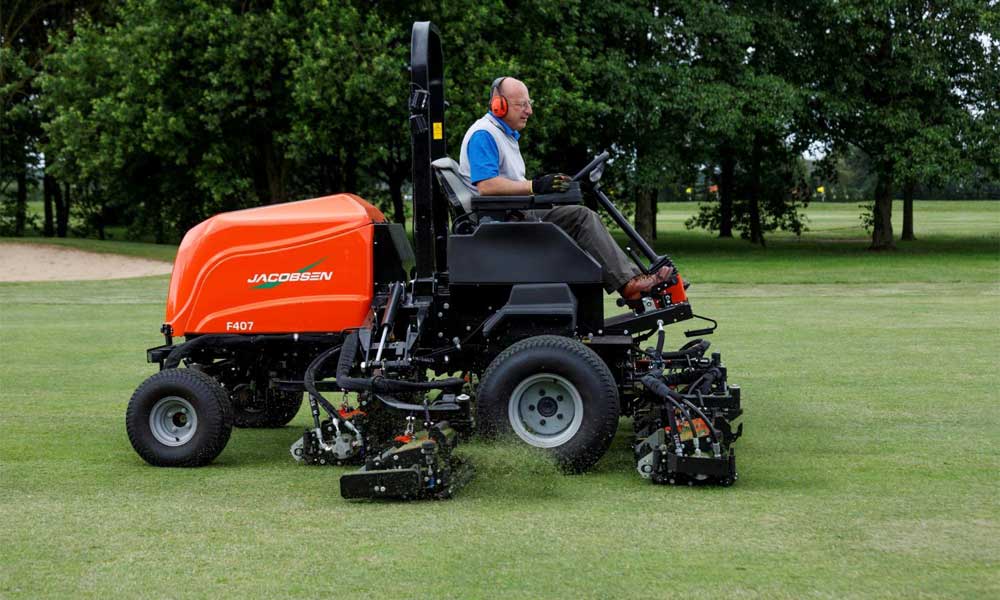

Ergonomic Design

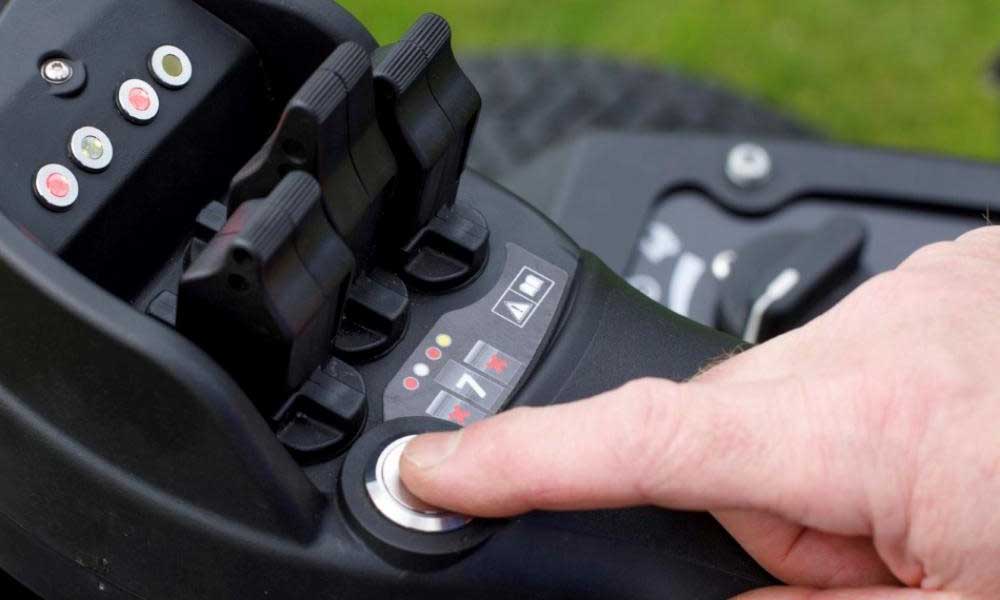

The F407 features an arm-rest mounted joystick for easy control of cutting units, and a high-back suspension seat, minimising operator fatigue.

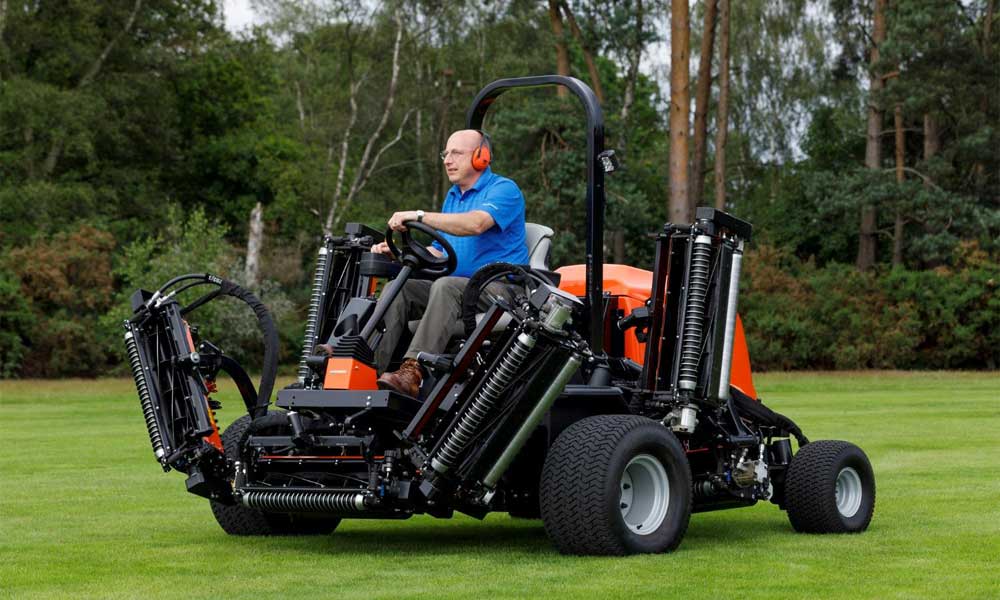

Independent Operation
Each wing unit can be raised or lowered independently, meaning you can handle multiple different terrains or obstacles.

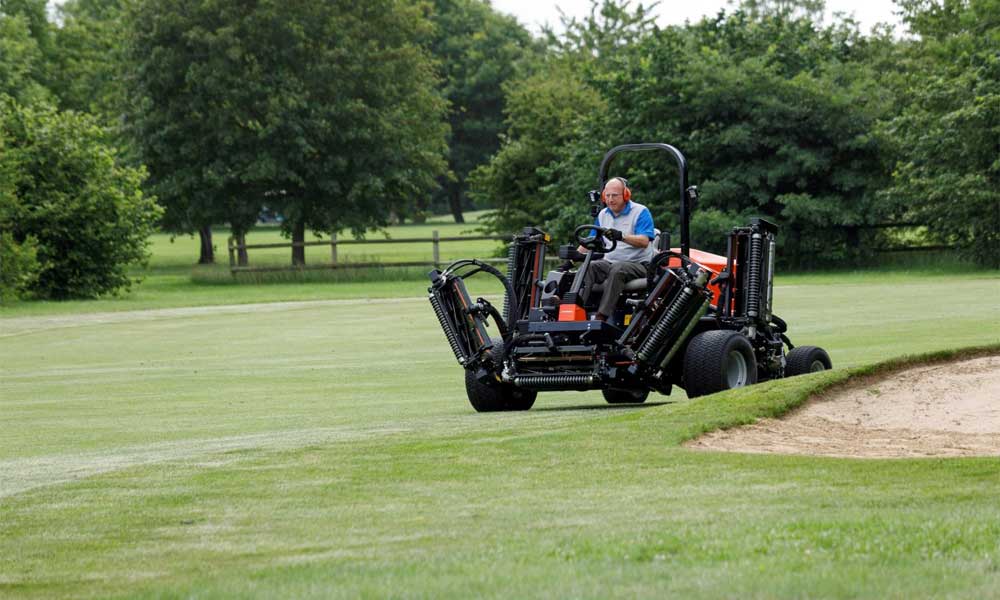

SureTrac™
The F407’s SureTrac™ parallel-cross-series traction system ensures superior traction on hills and side slopes, with four high-torque wheel motors.

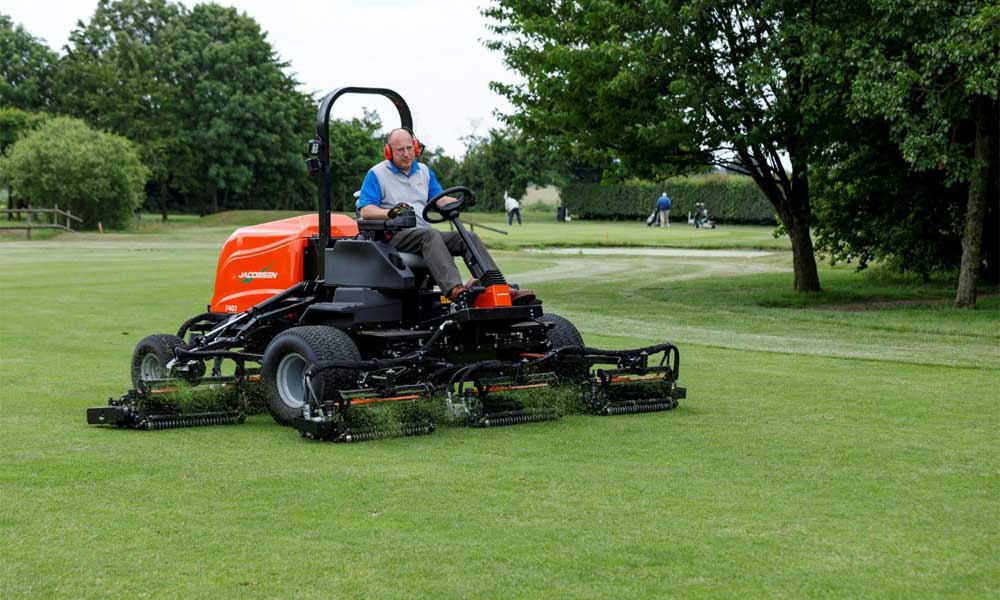

Wide Range of Cut Height
With an adjustable cut height between 0.47 to 1.85 inches (12 mm to 47 mm), the F407 is versatile for different turf conditions and requirements.

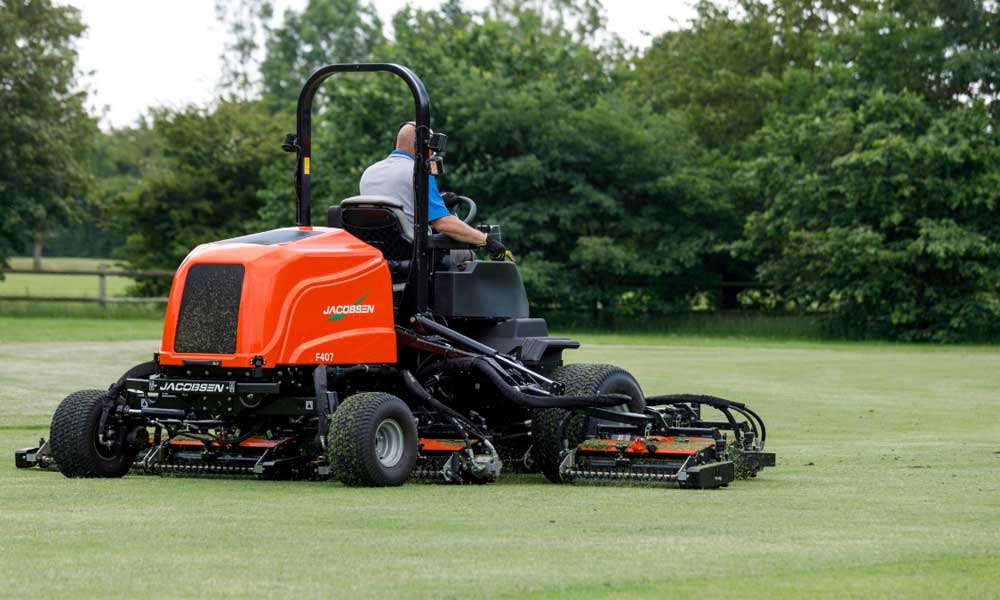

Powerful Kubota® Engine
The F407 is equipped with an efficient and powerful Kubota® V1505-TE engine. An improved radiator pack and hood is optimized for increased airflow, and an easy access engine bay makes maintenance simpler and quicker.

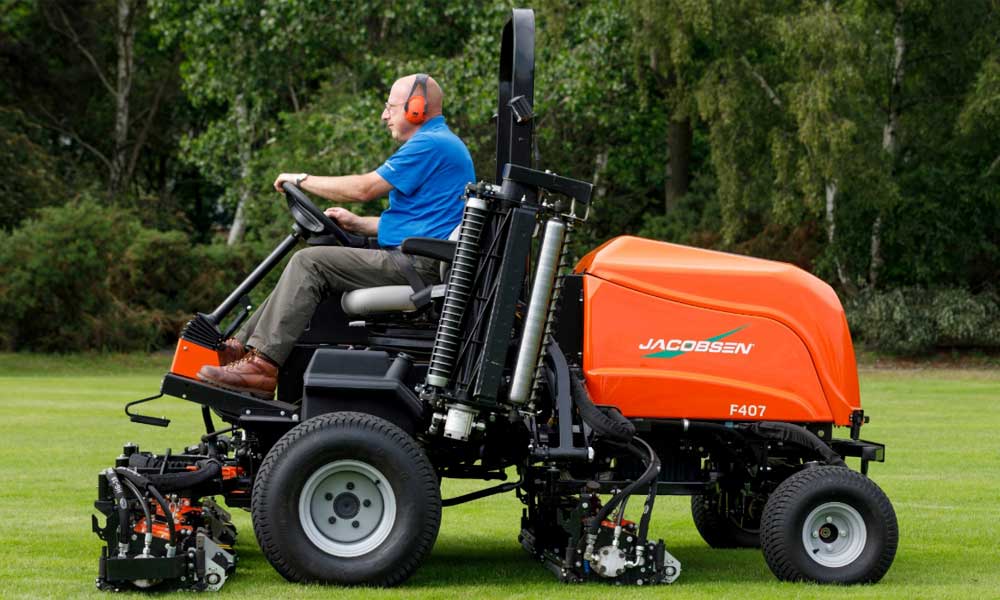

Explore the F407
Experience the power and precision of the F407. Watch to learn more about how this high-capacity mower delivers exceptional performance and quality on large turf areas.

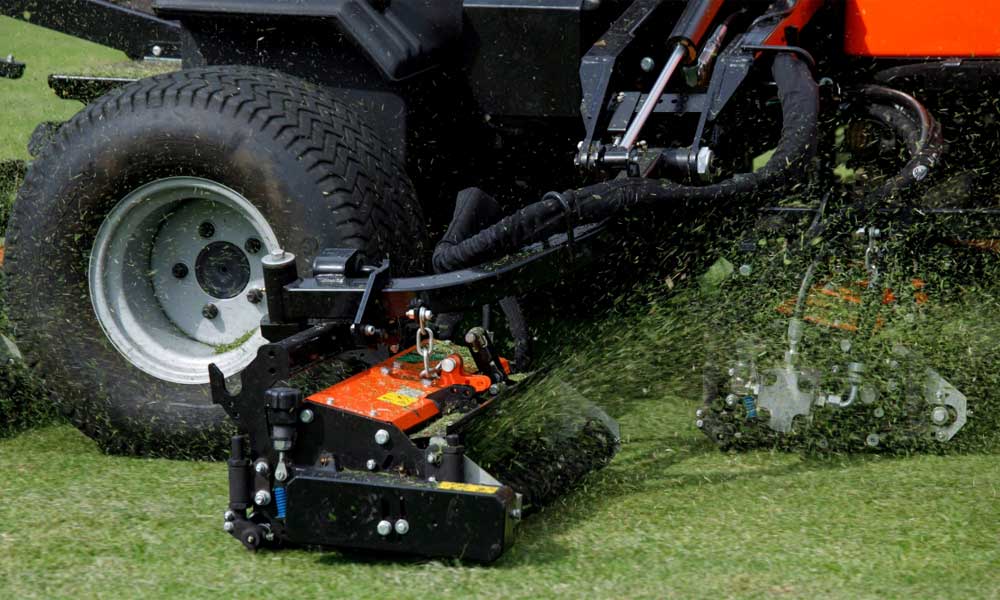

Customisation Options
The F407 has multiple blade options ensuring a customised cut for where the turf takes you. This machine is available with 7 or 11 blade cutting units and tough rear roller brushes.
Get A Productive Machine with a Quality Cut
Get Jacobsen’s widest mower with the signature Jacobsen cut and explore its productivity on your fairways. Request a quote to get started.
Request a Demo
See our products in action for a closer experience of the amazing capabilities on offer for all your turf requirement.
See the F407 in Action
Technical Specs
Mower Cutting Width: 158″ (4 m)
Mower Height of Cut: 0.47 – 1.85″ (12 – 47 mm)
Cutting Reels: 26″ (66.5 cm) reels, 6.5″ (16.5 cm) diameter floating head cutting unit with front and rear clipping discharge
Mower Engine: Kubota ® 44.3hp (33kW) diesel
Cutting Capacity: 46/72 cuts per meter at 7.5 mph (12 kph)
Fuel/Battery Capacity (+Run Time): 9.98 gal. (45.4 L)
Transport Speed: Selectable up to 8.7 mph (14 kph)
Number and Size: 7 or 11 blade cutting units, 46/72 cuts per meter at 7.5 mph (12 kph)
Blade Material: Hardened, high manganese carbon steel
Cutting Unit Lift: Wing units can be raised individually for transport or 5-unit operation
Traction Drive: SureTrac™ parallel-cross-series traction system with variable displacement hydrostatic drive; four high-torque wheel motors, 4WD in reverse.
Reel Drive: Fixed displacement hydraulic motors directly coupled to cutting unit
Hydraulic System: 8.31 gal. (37.8 L) capacity; Grade of oil to A.P.I. Classification CE/SF grades SAE 10W-30
Service Brakes: Hydrostatic braking
Parking Brakes: Fail-safe electro-hydraulic wet brakes
Steering: Hydrostatic power steering with adjustable tilt steering wheel
Mowing Speed: Selectable up to 7.5 mph (12 kph)
Reverse Speed: Selectable up to 4 mph (6.4 kph)
Weight: 4,149 lbs. (1,882 kg)
Length (less catchers): 116″ (2.95 m)
Overall Height (including ROPS): 84.6″ (2.15 m)
Wheel Base: 87.7″ (2.05 m)
Transport Width: 129.5″ (3.29 m)
Working Width: 169.7″ (4.31 m)
