FJD RCM01
Robotic Cylinder Mower
Tournament-Grade Cut for Fairways

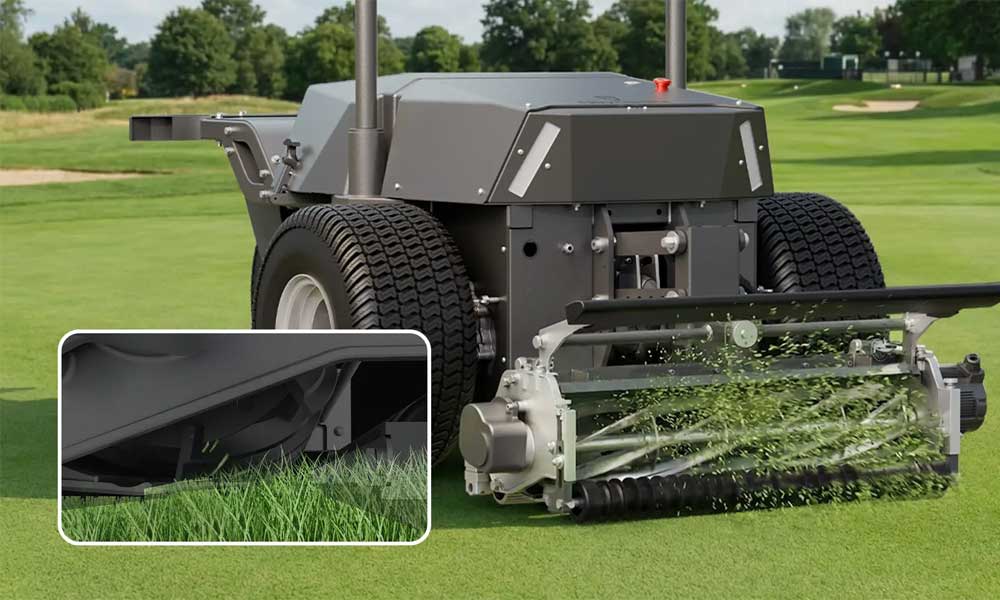

Precision Cutting
Achieve clean, scissor-like cuts with a reel system, minimizing leaf tearing and promoting healthier turf growth.

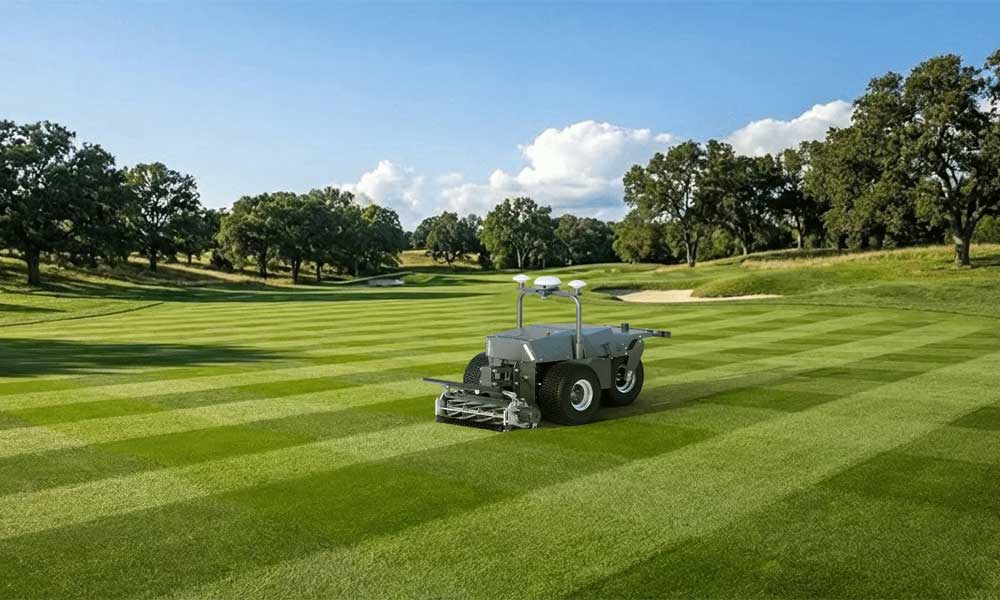

Professional-Grade Striping
Create clean, high-contrast stripes with precision roller blades. You can also customize striping widths to match your golf course’s style.
Shape the Turf, Define the Look
Adjust the mowing angle to easily change the direction of the stripes. This lets you create neat, professional, and custom patterns on your turf.
Higher Efficiency. Lower Costs.
Maximise your operational ROI by automating repetitive tasks, allowing your team and resources to work smarter while achieving more.

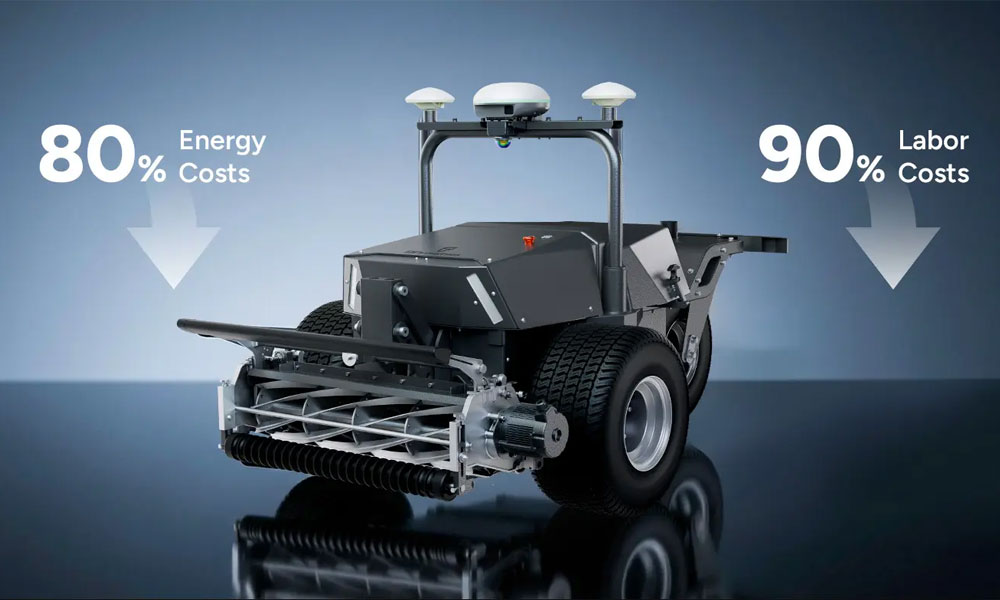

Do More with Less
One supervisor can remotely manage multiple mowers—freeing labor for higher-value tasks.

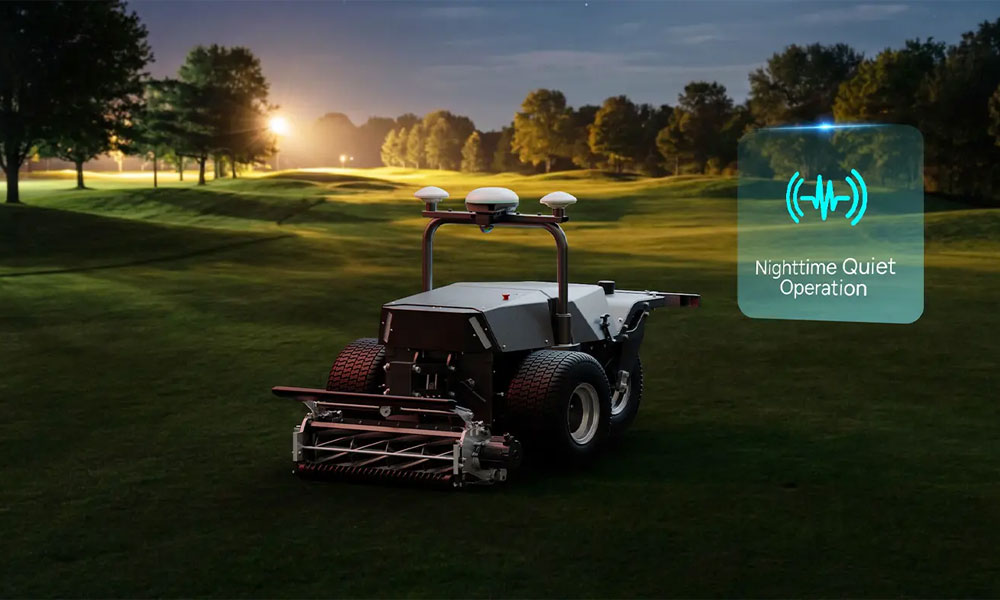

Nighttime Quiet Operation
Enable all-day autonomous mowing, freeing up daytime hours for golf course activities and reducing distraction to players.
Multi-Zone Management
Mow multiple zones in a single task and automatically move to the next area upon completion for seamless operation.
Hassle-Free Autonomy

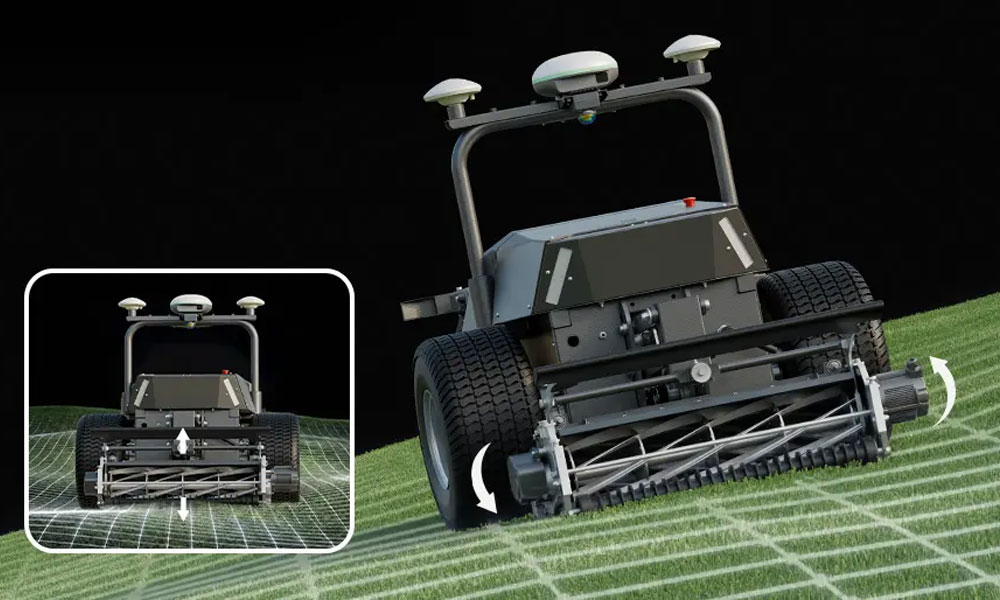

Dynamic Terrain Adaptability
Follow the turf’s natural curves automatically with the floating blade, making it easier to get a consistent cut and prevent turf scalping.
No Signal Lost Under Trees
Maintain high-precision navigation with no signal loss under trees or in signal-obstructed areas.
Comprehensive Safety Protection
Equipped with front and rear bumpers and LiDAR obstacle avoidance, ensure stable and secure autonomous operation.
Request a Demo
See our products in action for a closer experience of the amazing capabilities on offer for all your turf requirement.

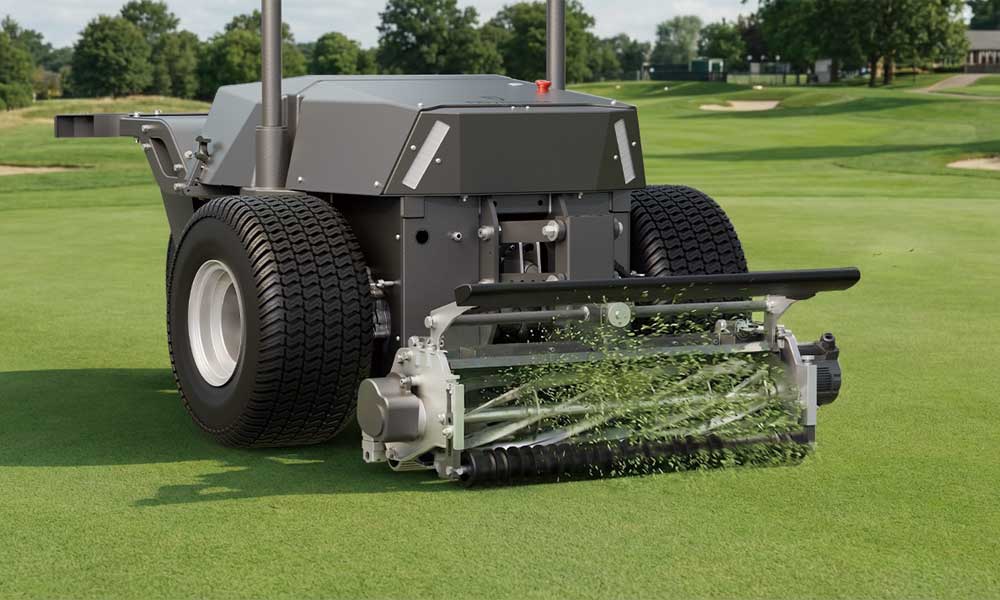

See the RCM01 in Action
Technical Specs
Max Mowing Area per Hour: 3,000㎡ (0.74 acres)
Max Mowing Area per Charge : 30,000㎡ (7.4 acres)
Max Climbing Ability* : 20°
Max Mowing Slope* : 15°
Boundary Type : Virtual Wire
Cutting Mode : Customised Angle Mowing
*Mowing area is a theoretical value under standard test conditions. Actual efficiency may vary with terrain and grass conditions.
*Working slope depends on site conditions. On slopes, routes should be planned primarily uphill/downhill. Cross-slope mowing should be avoided or used with caution.
Dimensions: 1905×1077×1077 mm / 75×42.4×42.4 in.
Software Update: OTA
Connectivity: 4G, Wireless Connectivity
Operating Temperature: -20℃ to 45℃ (-4°F to 113°F)
IP Rating: IPX4
Cutting Width: 686 mm / 27 in.
Reel Unit Weight: 1000×370×350 mm / 39.4×14.6×13.8 in.
Reel Speed: 300–2200 RPM
Number of Reels: 1 (8 Blades per reel)
Reel Diameter: 177mm / 7 in.
Reel Width: 685mm / 27 in.
Battery Life: 10h
Charging Time: 5h
Rated Operating Voltage: 48V
