Rough & Trim Mowers
TR330
High Traction Side Shifting Trim Mower
Key Features

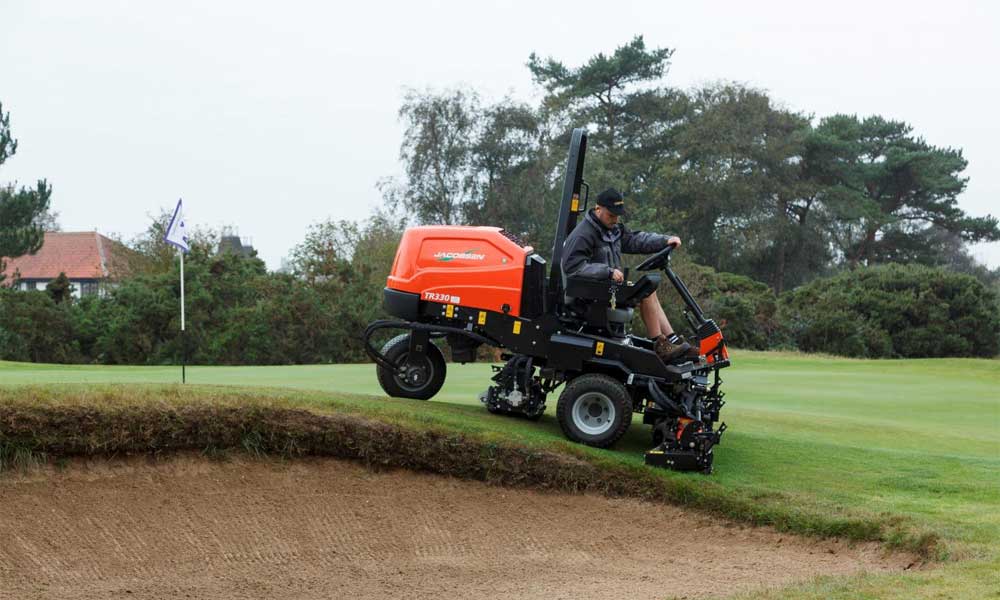

ADAPTISHIFT™
The TR330’s side shifting reel allows the operator to move cutting reels up to 12-inches to either side, enabling precise trimming around tees, small fairways, and other precise turf locations.
Optional Cutting Widths
Available in 72-inches (1.83 m) or 84-inches (2.13 m), the TR330 allows for flexibility to match the area being maintained.

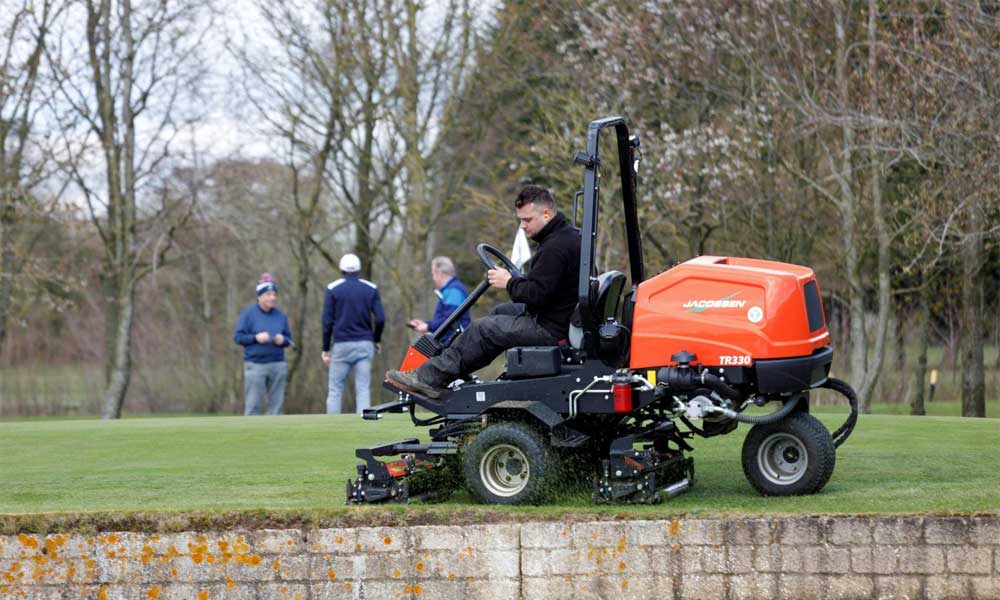

Wet Parking Brake
With wet parking brakes that are completely maintenance-free, the TR330 eliminates the need for regular brake maintenance while still ensuring safety and security.

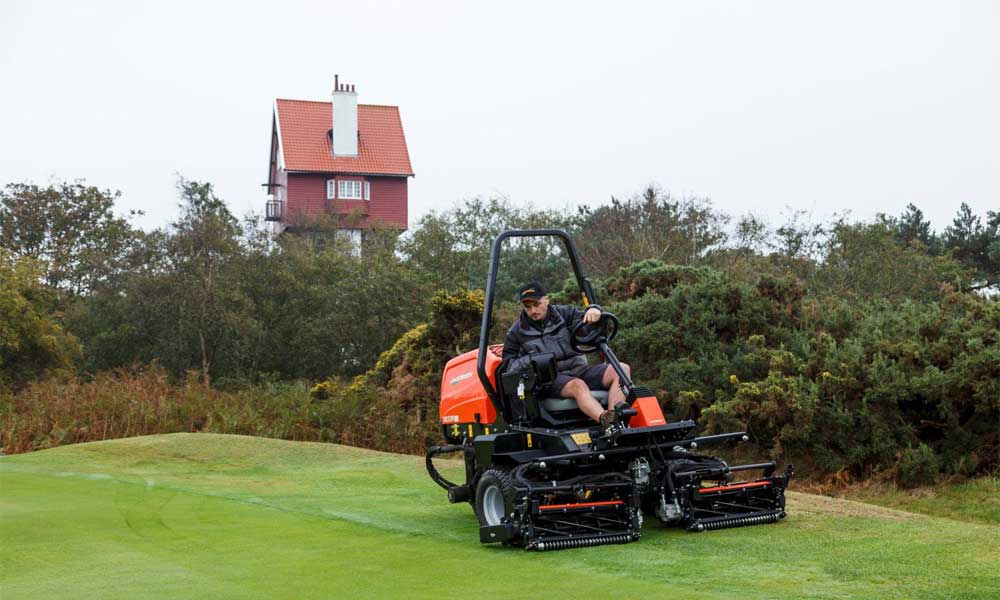

Operator Comfort
This machine is built with operator comfort in mind, featuring an ergonomic design and easy-to-use controls, to ensure lower operator fatigue.

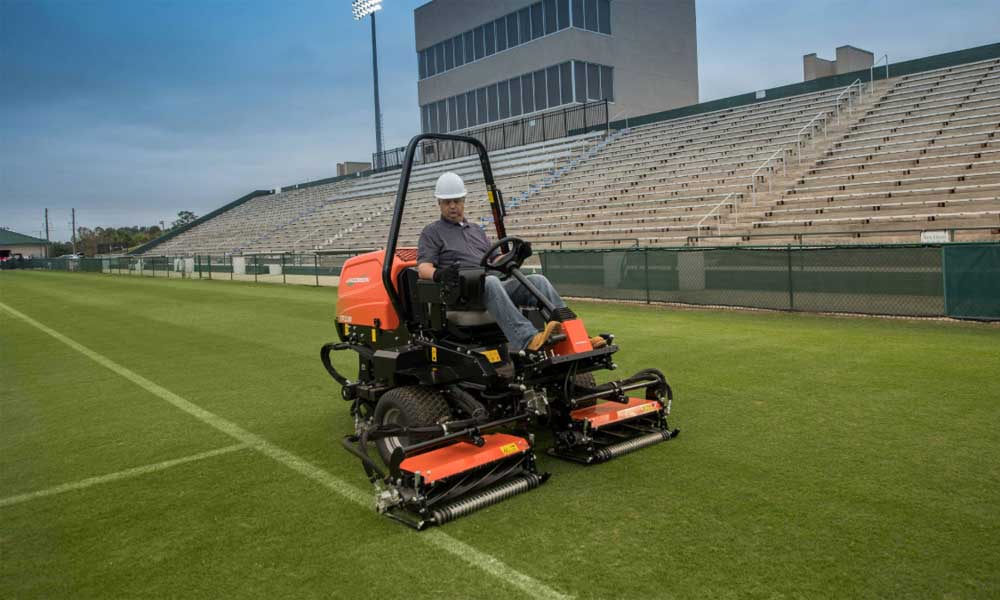

Trustworthy Diesel Engine
Powered by a 24.8 HP (18.6 kW) diesel engine, the TR330 has the power to handle various mowing conditions regardless of weather. This engine is designed to match the long-lasting power of the TR330.

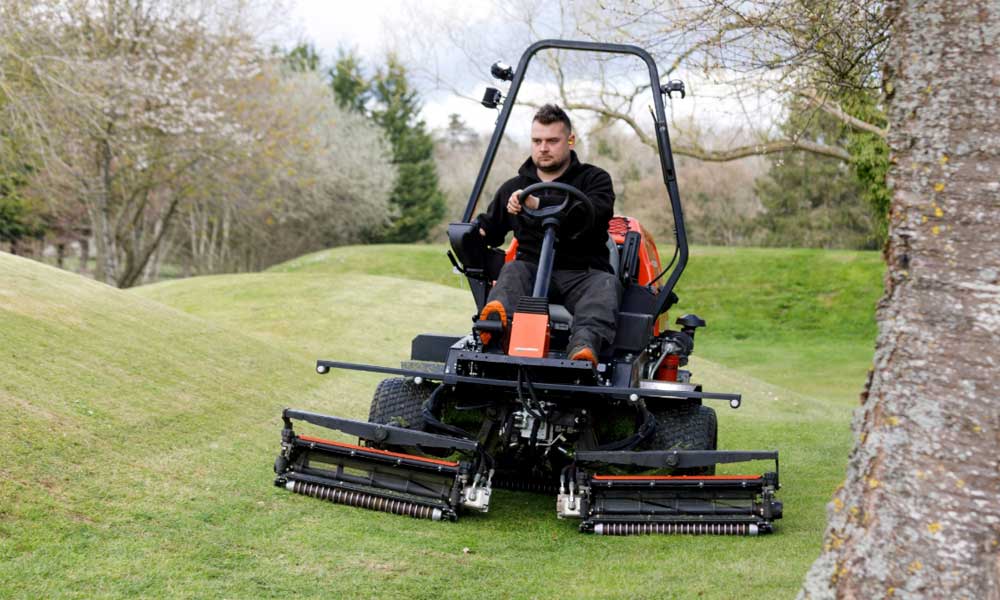

Explore the TR330
Experience the power and precision of the TR330. Watch to learn more about how this high traction mower delivers exceptional performance and quality on turf areas.

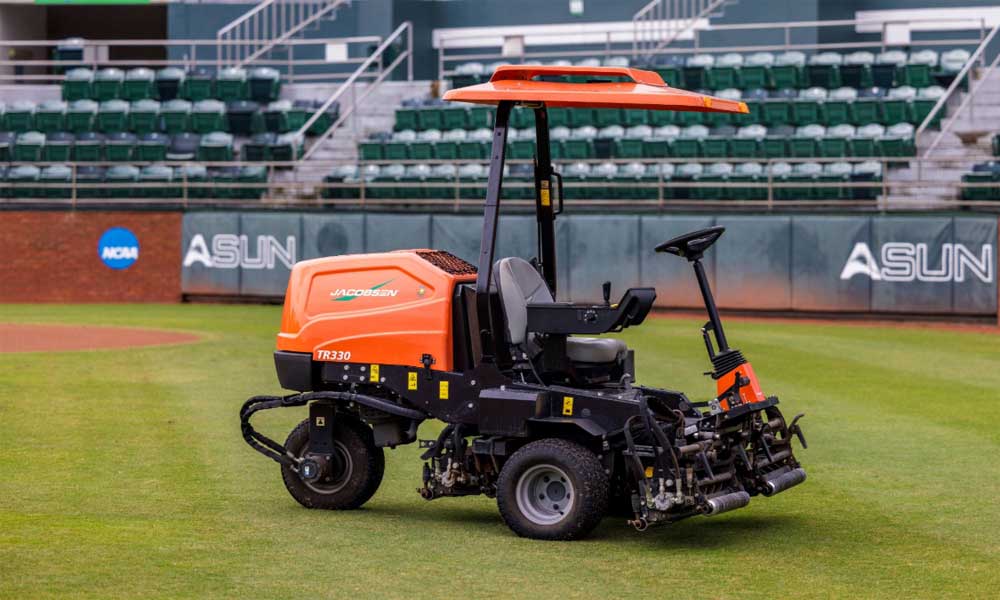

Reels and Additional Accessories
Various reel options, including 5, 7, or 11 blades per reel, are available to match the cut you need. Find a dealer and discover ways to specialise your TR330.

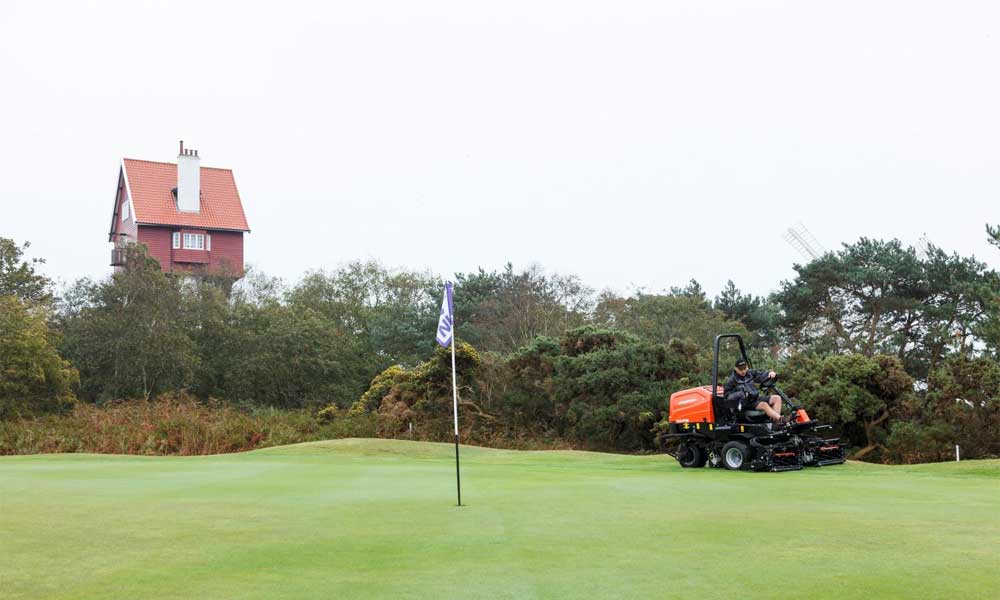

High Traction Trim Mower
Get quality cut and control in the palm of your hand with the TR330. Want to see if this mower is the right fit for you? Request a quote and speak with a dealer about how the TR330 can elevate your fleet.
Request a Demo
See our products in action for a closer experience of the amazing capabilities on offer for all your turf requirement.
See the TR330 in Action
Technical Specs
Mower Cutting Width: 72″ (1.83 m) or 84″ (2.13 m) featuring ADAPTISHIFT™ with up to 12″ (30.5 cm) of offset
Mower Height of Cut: 0.37 – 2.75″ (9.5 – 69.8 mm)
Blades per Reel: 5, 7 or 11
Fuel/Battery Capacity (+Run Time): 7.6 gal. (28.7 L)
Mower Engine: 24.8 HP (18.6 kW) Diesel
Cutting Capacity: 4.5 – 5.3 acres (1.83 – 2.13 hectare) / hr
Number and Size: 3 x 26″ (66.0 cm) or 30″ (76.2 cm) reels; 7″ (178 mm) diameter
Blade Material: Hardened, high manganese carbon steel
Cutting Unit Lift: Armrest mounted joystick
Traction Drive: Parallel-series “on-demand” 3WD
Reel Drive: Fixed displacement hydraulic
Hydraulic System: 8.7 gal. (33 L) capacity, full flow filtration (10 micron filter); GreensCare biodegradable oil
Service Brakes: Dynamic braking through hydrostatic drive
Parking Brakes: Service-free electronic wet disc
Steering: Hydraulic power steering with tilt wheel
Mowing Speed: 6.2 mph (10 kph)
Transport Speed: 8.7 mph (14 kph)
Weight: 1664 – 2299 lbs. (755 – 1043 kg)
Length (less catchers): 97″ (2.46 m)
Overall Height including ROPS: 80″ (2.04 m)
Wheel Base: 43.5″ (1.36 m)
Transport Width: 83″ (2.11 m)
Working Width: 83″ (2.11 m)
