Greens Mowers
Greens King® IV Plus
Diesel/Gas Greens Reel Mower
Key Features

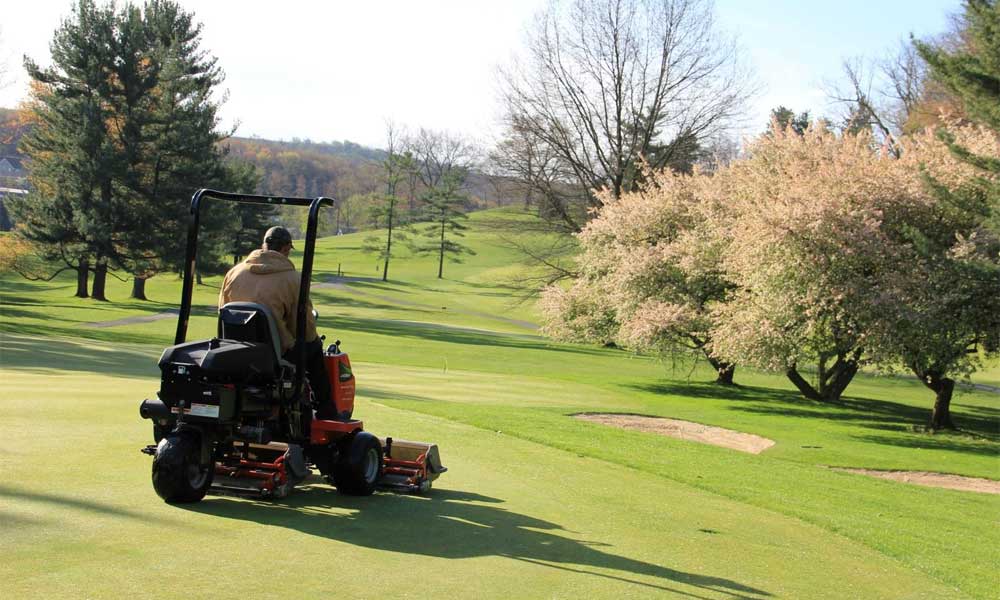

Power Steering
The Greens King IV Plus features power steering, which significantly lowers the physical effort needed to steer and enhances control and maneuverability.
Floating Cutting Head
Three 22-inch floating cutting heads that adjust independently to the terrain ensure a precise and even cut.

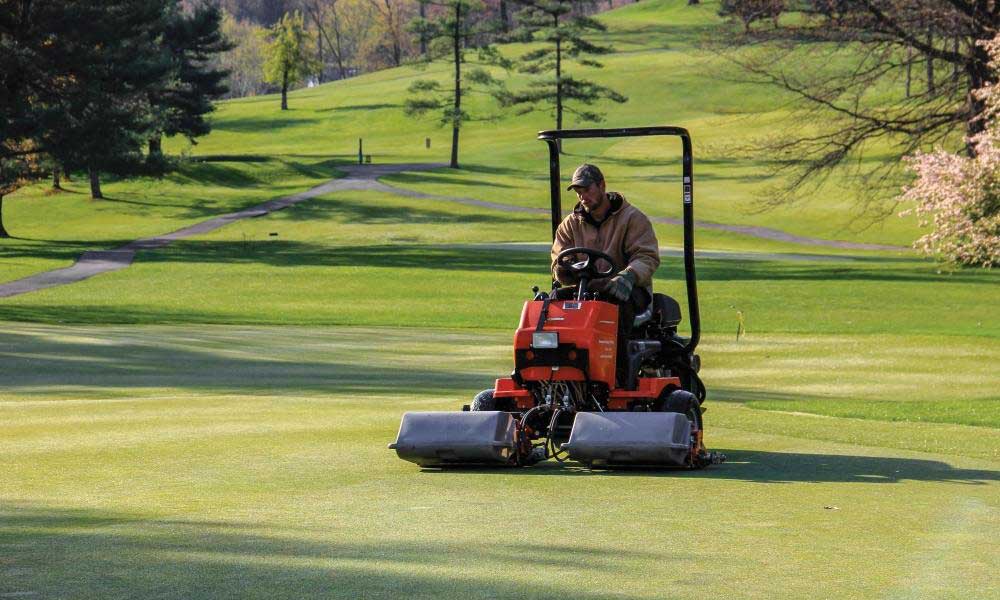

On-Board Backlapping
With on-board backlapping, sharpen reel blades without removing them and make maintenance a breeze.

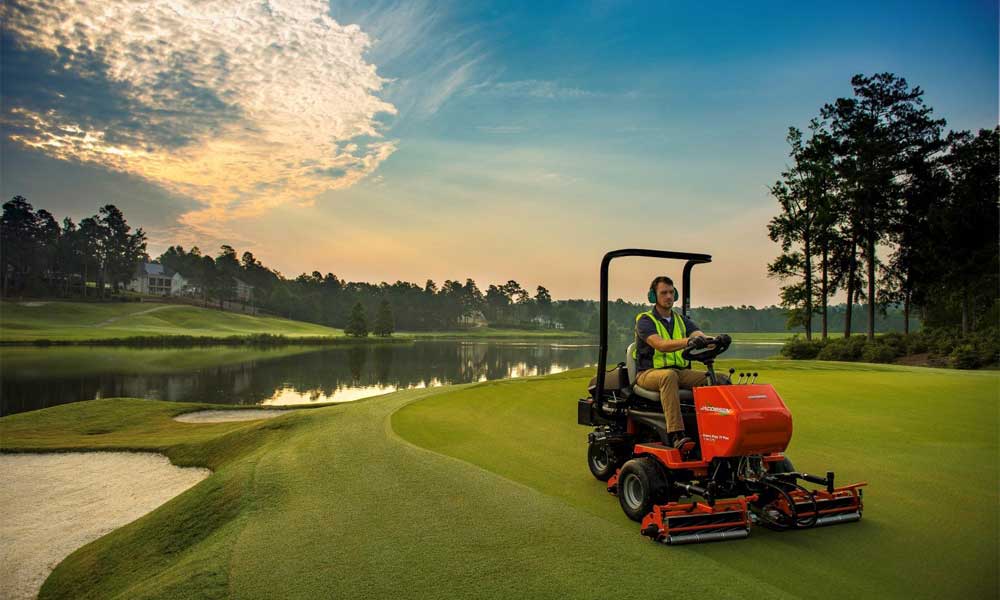

Walk-Through Operator Station
The Greens King IV Plus comes complete with a walk-through design allowing access from either side of the machine, an ergonomic control layout, and excellent visibility to cutting units.
Gas or Diesel-Powered
The Greens King IV Plus comes with the choice of an 18 HP Briggs & Startton Vanguard V-Twin gas engine or a 17.7 HP Kubota D722 diesel engine. These engines are designed to provide reliable performance and efficiency, making it a versatile choice for turf management.

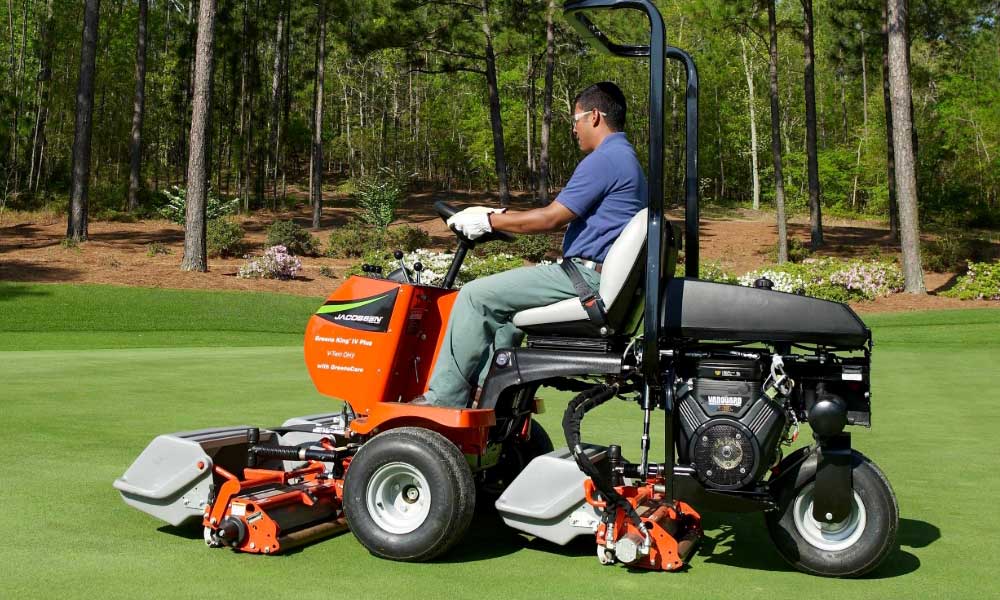

Hydraulic System with Biodegradable Fluid
The biodegradable hydraulic fluid incorporated in the hydraulic system not only ensures efficient operation, but also limits turf impact. The system includes double-action hydraulic cylinder and a filtration system, maintaining performance.
Multiple Attachments
Compatible with multiple different attachments to maintain any type of green, the Greens King IV Plus attachments include vertical mowers, brushes, green rollers, and turf groomers. Visit your local dealer to find out what attachments best fit your turf.

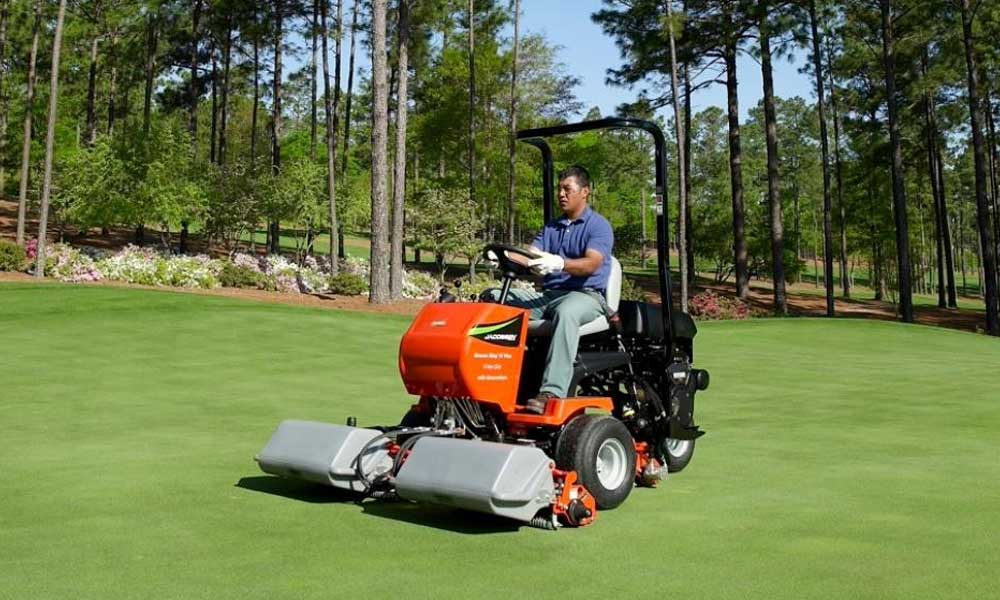

The Reigning Golf Green Cutting Machine
The Greens King IV Plus remains trusted and proven for courses around the world. Want to see if this mower is the right fit for you? Request a quote and speak with a dealer about how the Green King IV Plus can elevate your fleet.
Request a Demo
See our products in action for a closer experience of the amazing capabilities on offer for all your turf requirement.
See the Greens King IV Plus in Action
Technical Specs
Mower Height of Cut: 0.062 – 0.438″ (1.6 – 11.1 mm)
Blades per Reel: 7, 9 or 11
Fuel/Battery Capacity (+Run Time): 8 gal. (31 L)
Mower Engine: Gas 18 HP (13.4 kW); Diesel 17.7 HP (13.2 kW)
Cutting Capacity: –
Blade Material: Hardened, high manganese carbon steel
Cutting Unit Lift: Hydraulic lift
Cutting Frequency: 5 Blade: 0.035 in/mph (0.889 mm/kph), 11 Blade: 0.053 in/mph (0.836 mm/kph)
Reel Drive: Gear-type hydraulic motor; backlap control valve standard
Hydraulic System: Hydraulic double action cylinders; 5 gal. (18.9 L) capacity; 20-micron, full flow filtration; biodegradable fluid
Service Brakes: Dynamic braking through the hydraulic system
Parking Brakes: Internal expanding, hand operated
Steering: Power Steering
Mowing Speed: 3.7 mph (6 kph)
Transport Speed: 6.6 mph (10.6 kph)
Tires: 18 x 9.5-8, 2-ply, pneumatic, tubeless
Length (less catchers): 87.5″ (2.22 m)
Overall Height including ROPS: 78″ (1.98 m)
Wheel Base: 51.5″ (1.34 m)
Transport Width: 50.5″ (1.27 m)
Working Width: 70″ (1.78 m)
Fluid Capacities: Coolant Capacity: 0.75 gl. (2.85 L) Pressurized, sealed cooling system
