Greens Mowers
Eclipse 360 Hybrid
Diesel/Gas Electric Hybrid Reel Mower
Key Features

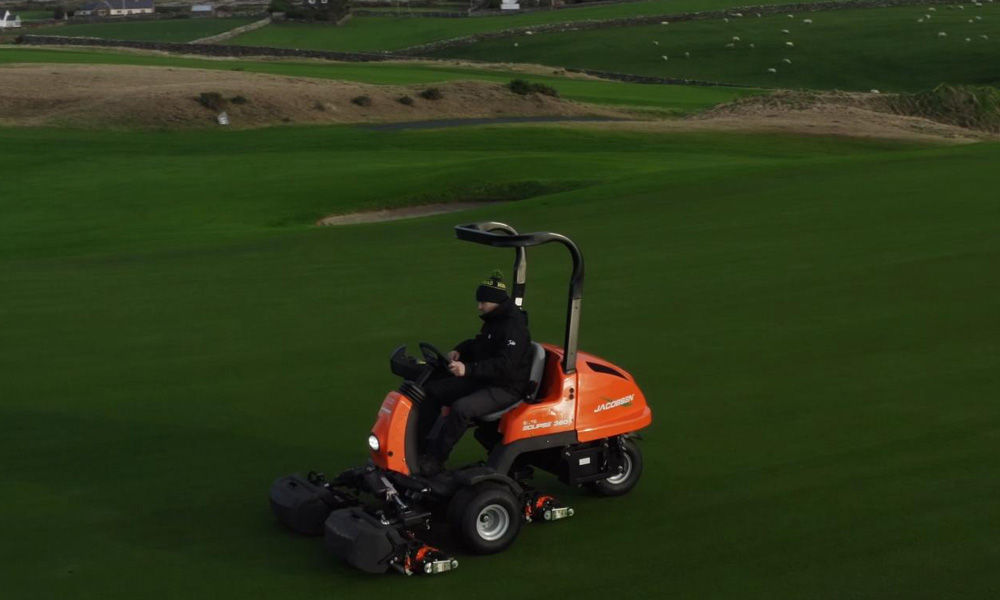

Trusted Hybrid Reel Mower
Drive one of the industry’s finest diesel and gas electric hybrid.

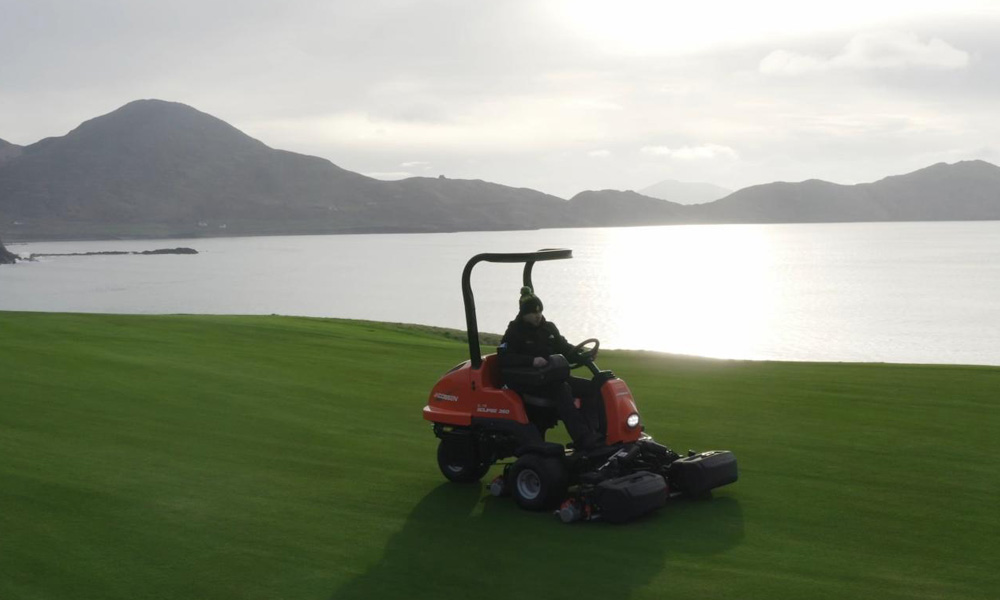

Cutting Units
Independently Controlled Lift and Lower Cutting Units with Swing Out Center for Ease of Service.

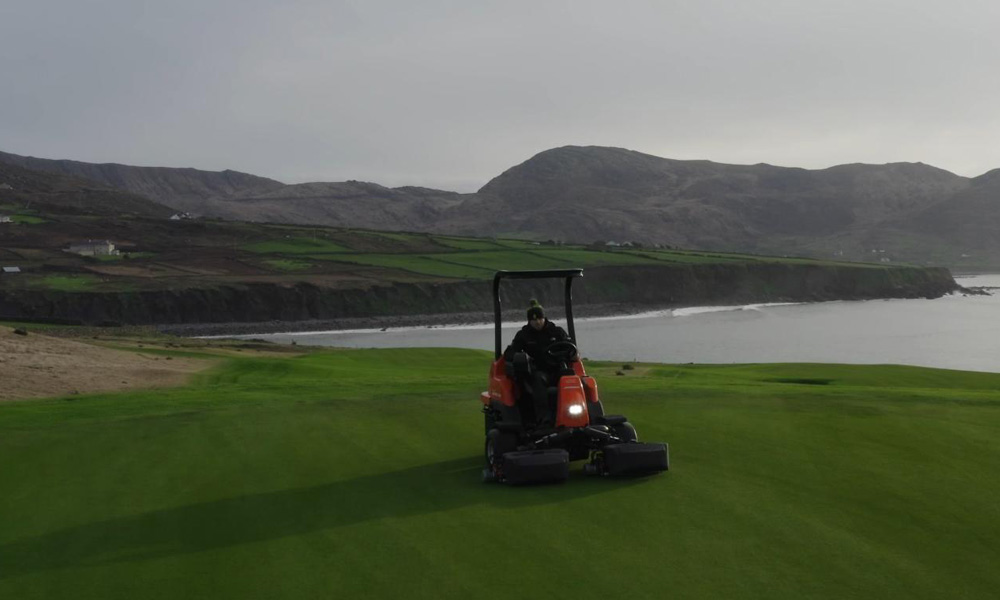

Parking Brake
Automatic hill hold parking brakes with no wearing parts.
A Safer Ride
The Eclipse 360 Hybrid features no hydraulics for greater turf protection.
Gas or Diesel-Powered Hybrid Engine
The Eclipse 360 Hybrid boasts two hybrid engine options, including a 13.3 HP (9.92 kW) air-cooled V-twin gas engine or a 13.3 HP (9.92 kW) Kubota diesel engine. The hybrid system integrates electric motors to drive the cutting reels and traction system, eliminating the need for hydraulics.
Reel Selection
Enjoy a wide range of reels and accessories for any application. Jacobsen boasts a phenomenal reel selection, configured specifically for fine turf jobs. Find a dealer and discover ways to specialise your Eclipse 360 Hybrid.

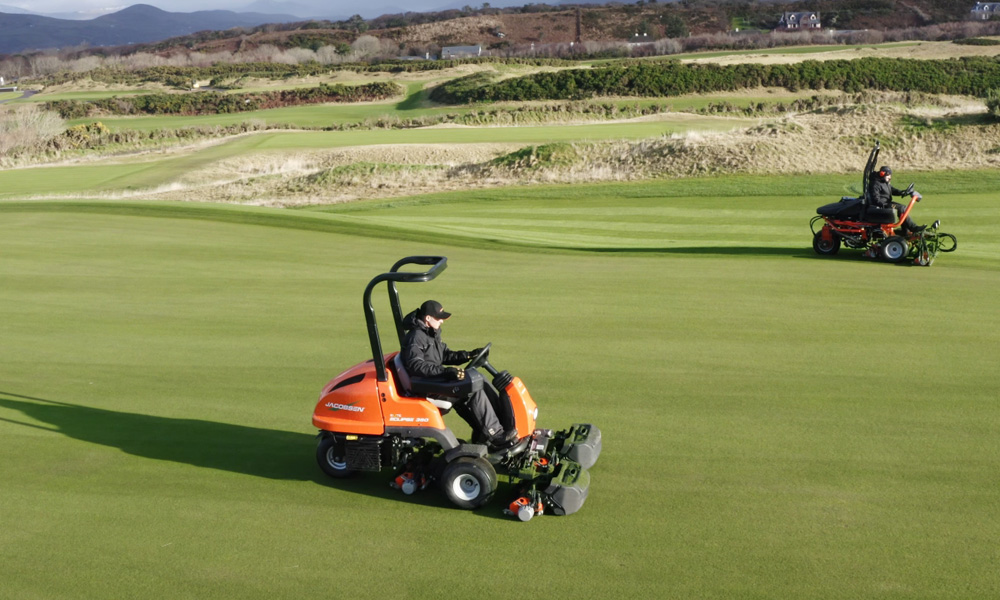

Decreased Downtime
Fuel consumption, noise levels, and machine maintenance downtime are all reduced due to the Eclipse 360’s hybrid powertrain. Mow early in the morning with less disturbance, and stay on the cut longer with less maintenance needed.
Request a Demo
See our products in action for a closer experience of the amazing capabilities on offer for all your turf requirement.

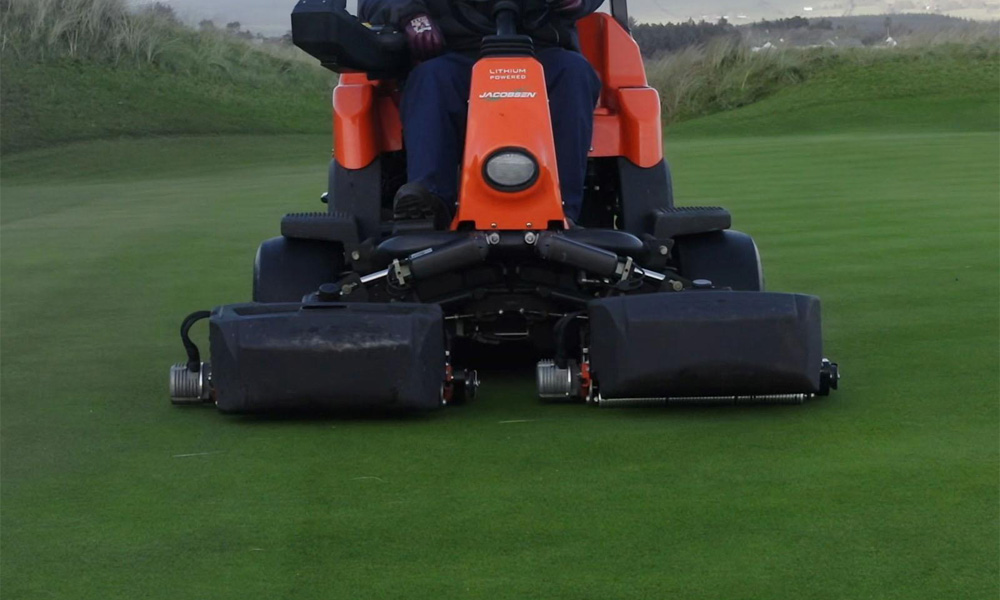

See the Eclipse 360 Hybrid in Action
Technical Specs
Mower Cutting Width: 62″ (1.6 m)
Mower Height of Cut: 0.062 – 0.438″ (1.6 – 11.1 mm)
Blades per Reel: 7, 9, 11 or 15
Fuel/Battery Capacity (+Run Time): Hybrid Gas – 5 gal. (19 L) 10 hrs. approx. run time, Hybrid diesel – 5 gal. (19 L) 15 hrs. approx. run time
Mower Engine: Hybrid Gas – 13.3 HP (9.92 kW) Air cooled V twin. Hybrid Diesel – Kubota 13.3 HP (9.92 kW)
Cutting Capacity: 2.37 acres (0.96 hectare) / hr (1.6 m x 6 kph)
Number and Size: 3 x 22″ (55.88 cm) reels; 5″ (127 mm) diameter
Blade Material: Hardened, high manganese carbon steel
Cutting Unit Lift: New Long Life linear actuator
Cutting Frequency: 0.036 – 0.250″ (0.91 – 6.35 mm) with 15 blade reel, electronically adjustable
Reel Drive: One brushless DC motor per reel; 1.3 HP (0.97 kW) continuous
Hydraulic System: No Hydraulic Oil
Service Brakes: Dynamic regenerative braking system
Parking Brakes: Automatic electro-magnetic multi-plate
Steering: Variable ratio Drive-by-wire steering with feedback control
Mowing Speed: 0 – 5.0 mph (0 – 8.9 kph); electronically adjustable max speed
Transport Speed: 0 – 9.0 mph (0 – 14.5 kph); electronically adjustable max speed
Tires: 18 x 10.5 x 8 4-ply
Length (less catchers): 101″ (2.56 m) (with Catchers)
Overall Height including ROPS: 79.3″ (2.01 m)
Wheel Base: 52″ (1.32 m)
Transport Width: 67.7″ (1.72 m)
Working Width: 67.7″ (1.72 m)
