Fairway Mowers
SLF530
Super Lightweight Ride-on Reel Mower
Key Features

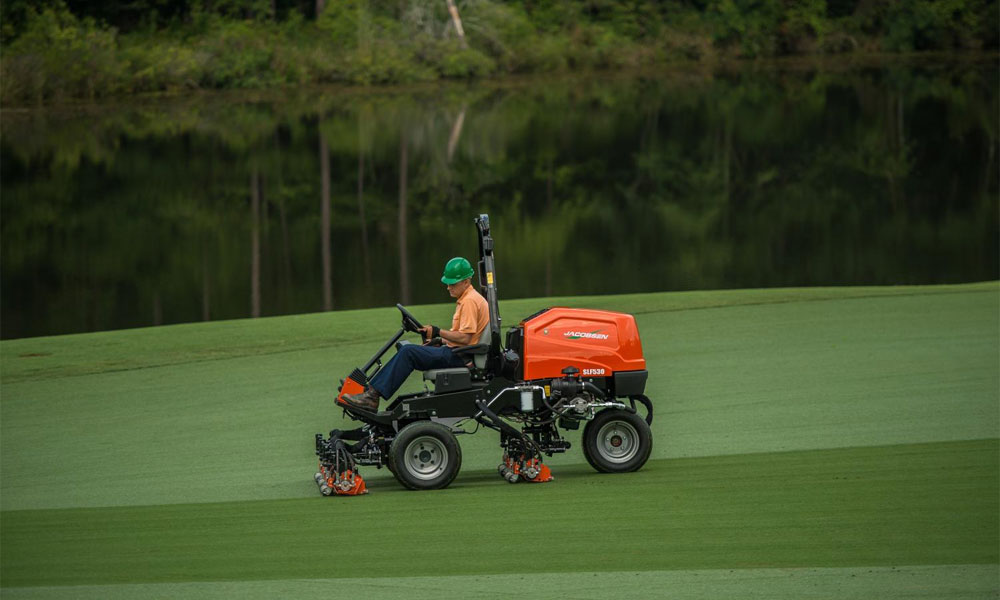

Unmatched Precision
An 82-inch cutting width and advanced reel technology ensure a flawless cut while maintaining the pristine appearance of turf.

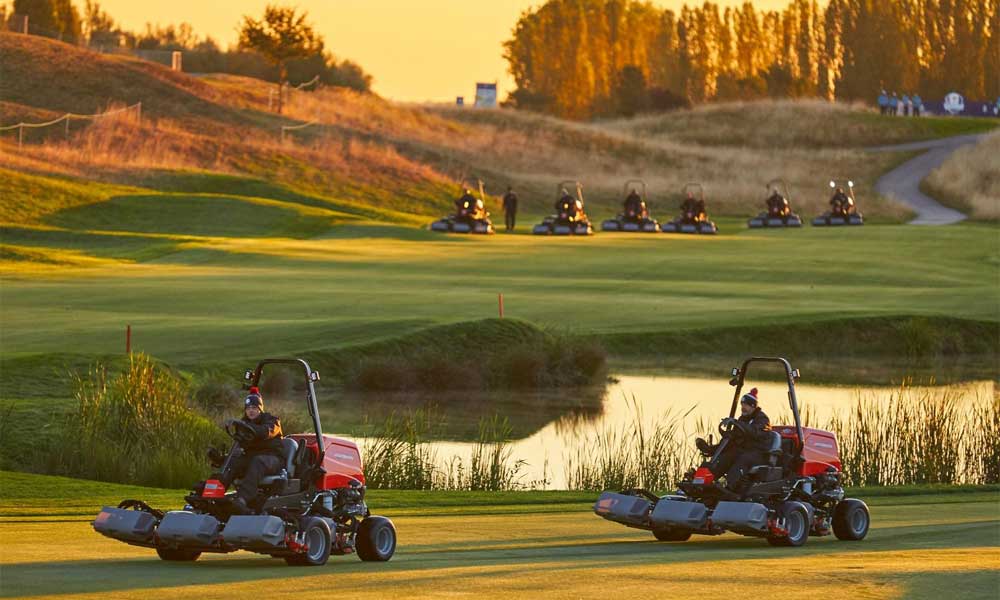

Superior Manoeuvrability
Navigate tight fairways and intricate bunkers with the SLF530’s contour following capabilities and joystick-controlled hydraulic lift system.

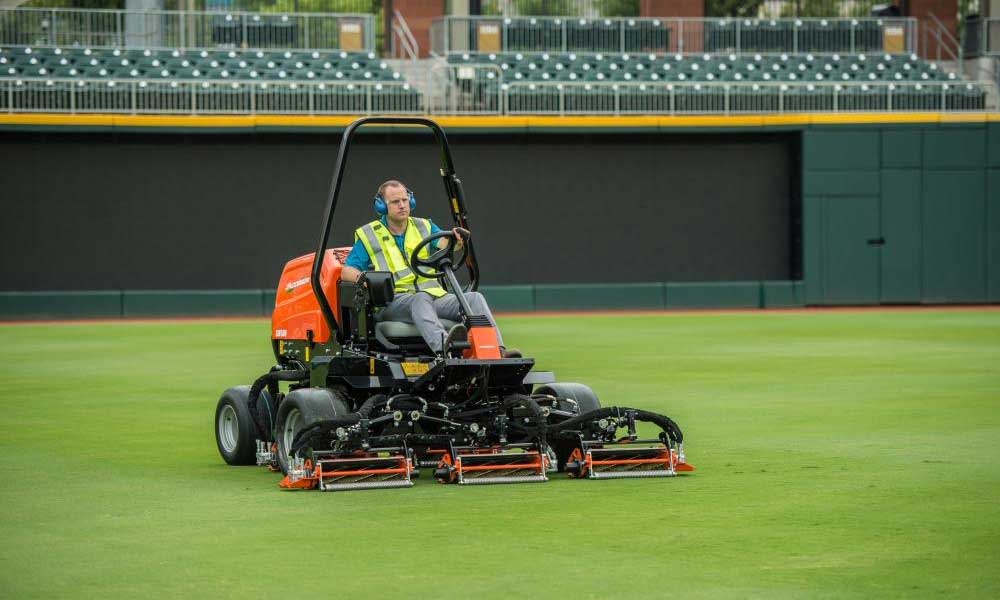

Lightweight Design
With less than 10 PSI ground pressure, the SLF530 is ideal for use on golf fairways and sports fields.

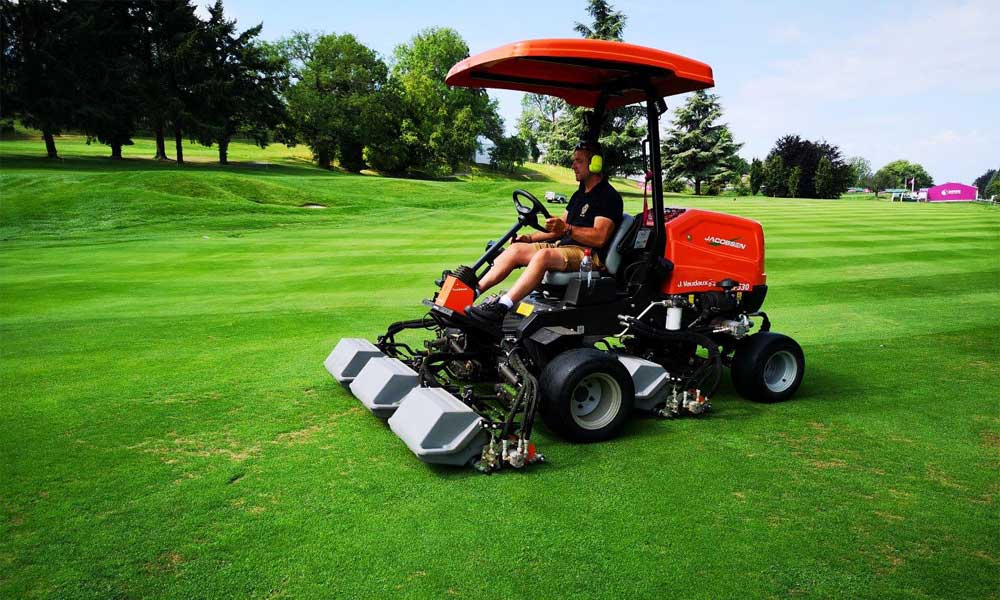

Operator Comfort
The SLF530 features a joystick-controlled hydraulic lift system, one touch lift and lower reel control, and a high-resolution colour screen for advanced diagnostics.

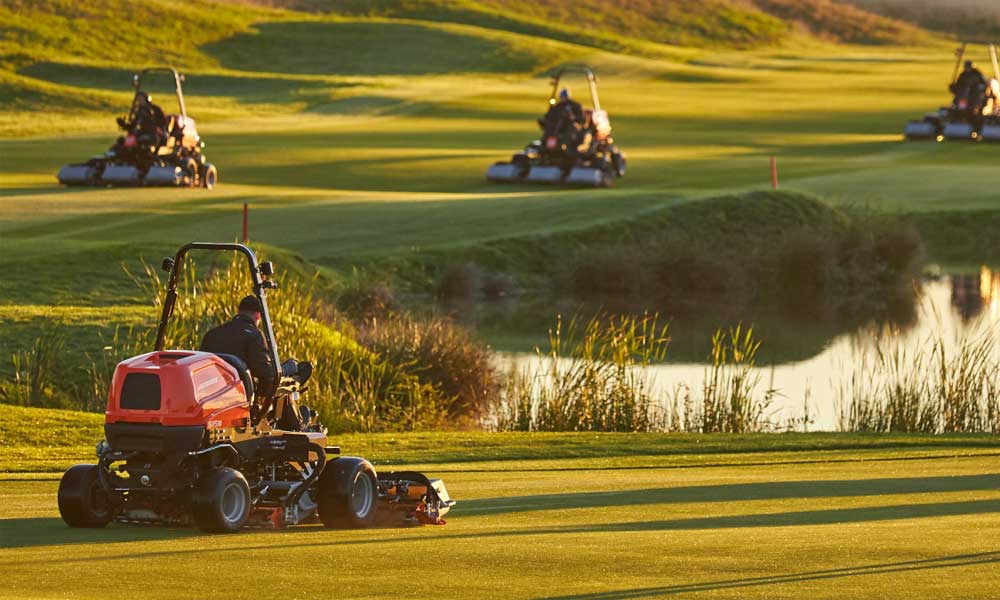

Engineered for Excellence
Powered by a robust 24.8 HP diesel engine, this powertrain delivers consistent, reliable performance. The engine is liquid cooled and is especially well-suited for the SLF530’s super lightweight ride.
Drive System
The SLF530 is available in both 3 and 4-wheel drive. The 3-wheel drive system allows for more manoeuvrability, while the 4-wheel drive model offers better traction and stability.

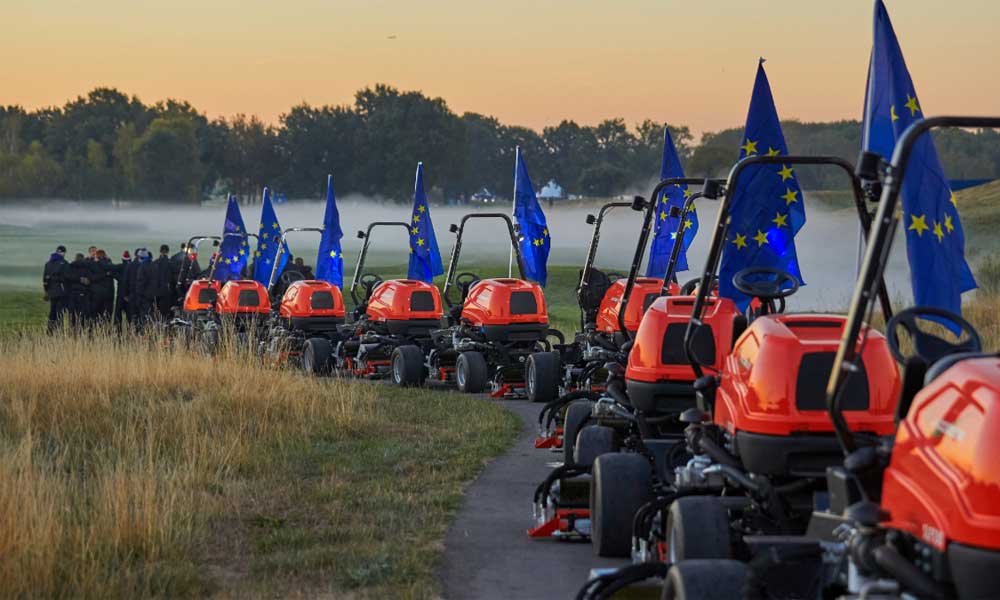

Cutting Reels
The SLF530 is equipped with five 5-inch diameter reels, each 18 inches wide. These reels are available in 8- or 11-blade configurations for maximum customization.

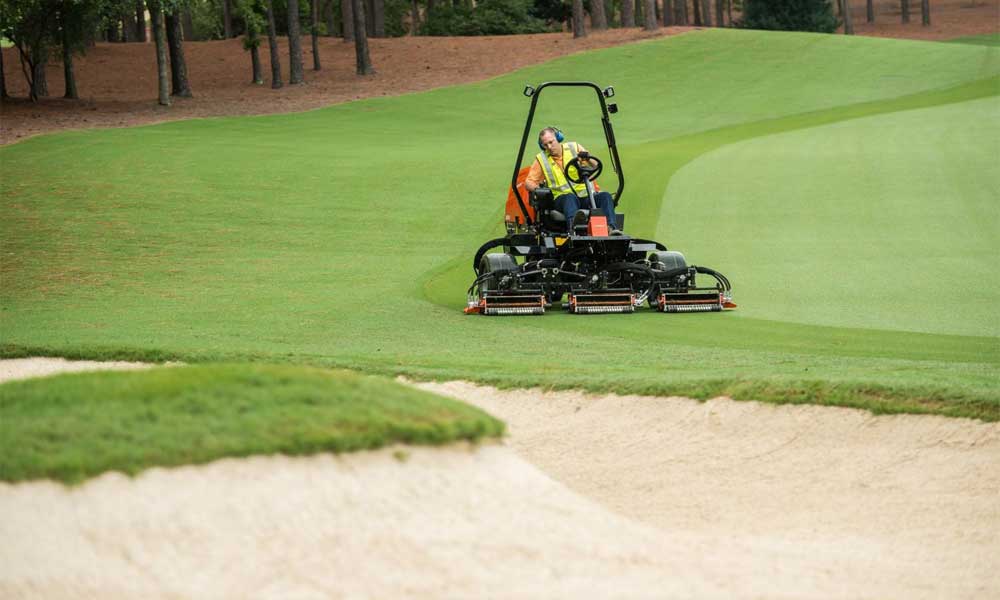

Quality Design
The SLF530’s quality design is unmatched by competitors. Request a quote today and explore how this machine can best suit your turf care needs.
Request a Demo
See our products in action for a closer experience of the amazing capabilities on offer for all your turf requirement.
See the SLF530 in Action
Technical Specs
Mower Cutting Width: 82″ (2.08 m)
Mower Height of Cut: 0.3 – 0.7″ (7.62 – 17.78 mm), Available high-cut kit raises cutting height to 0.937″ (23.8 mm) using low profile, heavy bedknife
Cutting Reels: 5 x 5″ (12.7 cm) diameter x 18″ (45.7 cm)
Mower Engine: 24.8 HP (18.6 kW) diesel
Cutting Capacity: 6.5 acres (2.63 hectares) per hr (no overlaps or stops)
Fuel/Battery Capacity (+Run Time): 6.4 gal. (29 L)
Transport Speed: 8.7 mph (14 kph)
Number and Size: 8 or 11 Blade Fairway reel (greens reel cylinders can be installed for custom applications)
Blade Material: Hardened, high manganese carbon steel
Cutting Unit Lift: Hand operated, joystick controlled hydraulic lift system, one-touch lift/lower control for all reels.
Traction Drive: 3WD: Parallel series 3-wheel drive, 2-wheel drive in reverse. 4WD: Pure Parallel 4-wheel system with selectable 2 or 4-wheel drive and automatic 2-wheel drive in reverse.
Reel Drive: Fixed displacement hydraulic motors
Hydraulic System: 10 micron remote charge filtration, suction screen at tank, oil cooler, side by side radiator.
Service Brakes: Hydrostatic braking
Parking Brakes: Wet parking brakes integrated into wheel motors.
Steering: Hydrostatic powered equal displacement cylinder to rear wheels
Mowing Speed: 6.2 mph (10 kph)
Reverse Speed: 3.7 mph (6 kph)
Weight: 3WD: 1,956 lbs. (887.2 kg), 4WD: 2,053 lbs. (931.2 kg), Less than 10 PSI ground pressure
Length (less catchers): 102″ (2.59 m)
Overall Height (including ROPS): 83.2″ (2.11 m)
Wheel Base: 4WD – 62″ (157 cm), 3WD – 61.3″ (156 cm)
Transport Width: 98″ (2.45 m)
Working Width: 82″ (2.08 m)
