HM600
WIDE AREA MULCHING FLAIL MOWER
Key Features

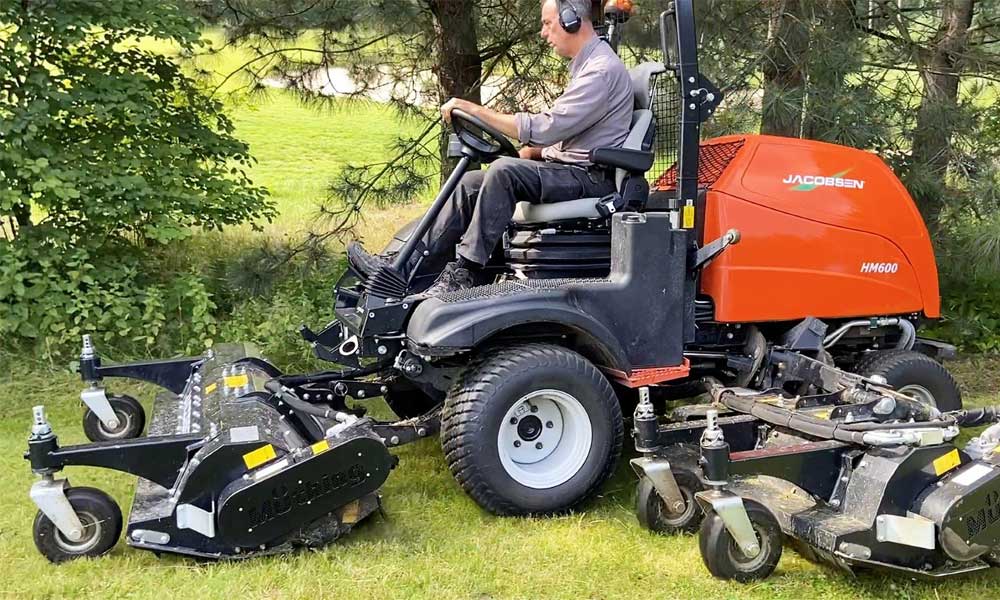

Clean and Simple Maintenance
High carbide steel flails are easy to maintain and sharpen throughout their life. Allowing for less downtime and higher productivity.
A Trusted MÜTHING® Triple Flail Cut
The MÜTHING® flails are designed for heavy-duty use, providing reliable performance and longevity even under tough mowing conditions.

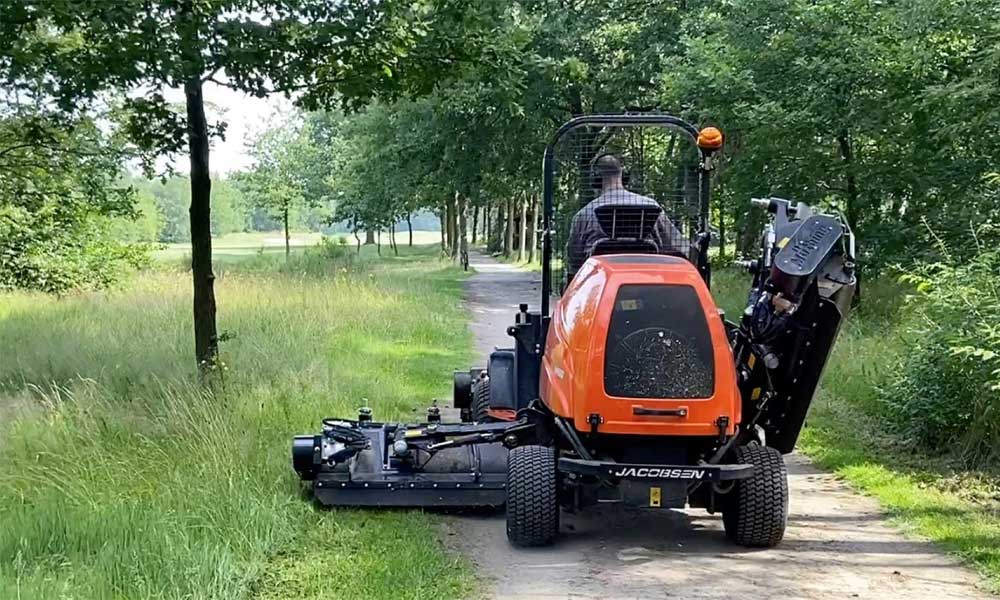

Strength, Comfort & Versatility Meet Finesse
The HM600 has the power you need to run the applications with the 65.2HP Kubota engine. Along with the ergonomic layout, finger tip operated joystick and comfortable seat, the operator will get every job done smoothly.

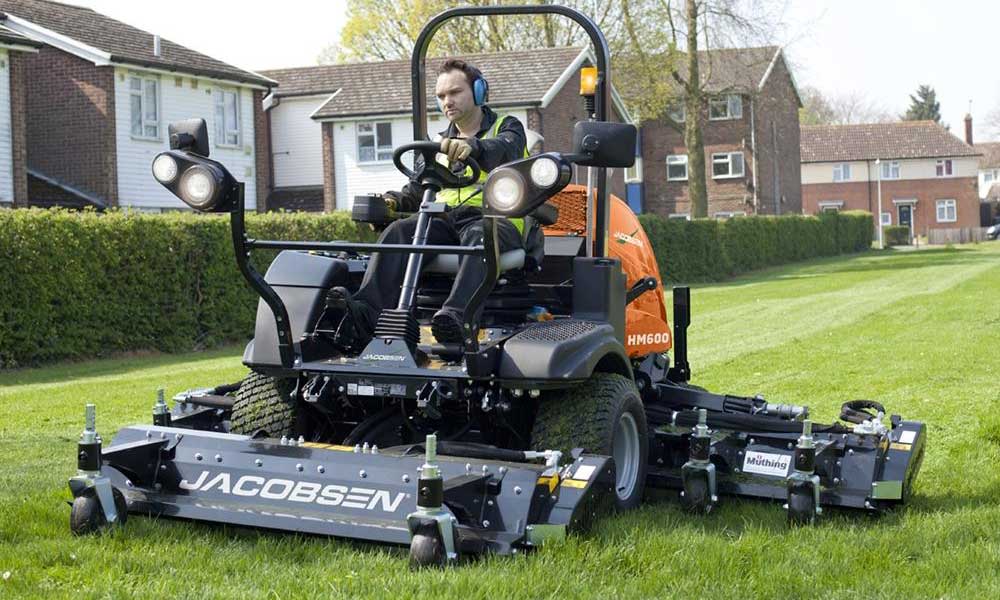

3.2M MÜTHING® Cutting Width For Longer Grass
This full width offers 126″ of productive cutting but units can also be used independently, making it adaptable to the conditions and contours of the course.

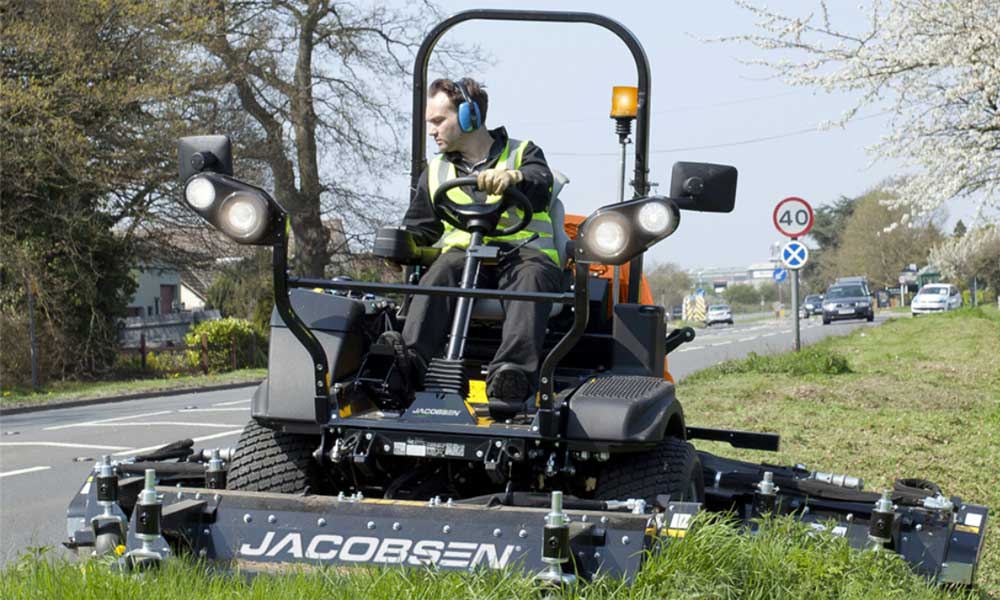

Superb Mulching & Grass Clipping Distribution
Using Muthing’s patented shredding technology, the internal shredding bars cut the grass multiple times and it only comes out the back when it’s mulched into a fine form. This allows the grass to rot down quickly, overall improving the level of the turf.
Excellent Ground Following
A short wheel base allows the HM600 to run smoothly over contours, hugging the ground and creating a superior after-cut finish. This enhanced maneuverability allows the mower to navigate tight spaces and complex terrains easily.

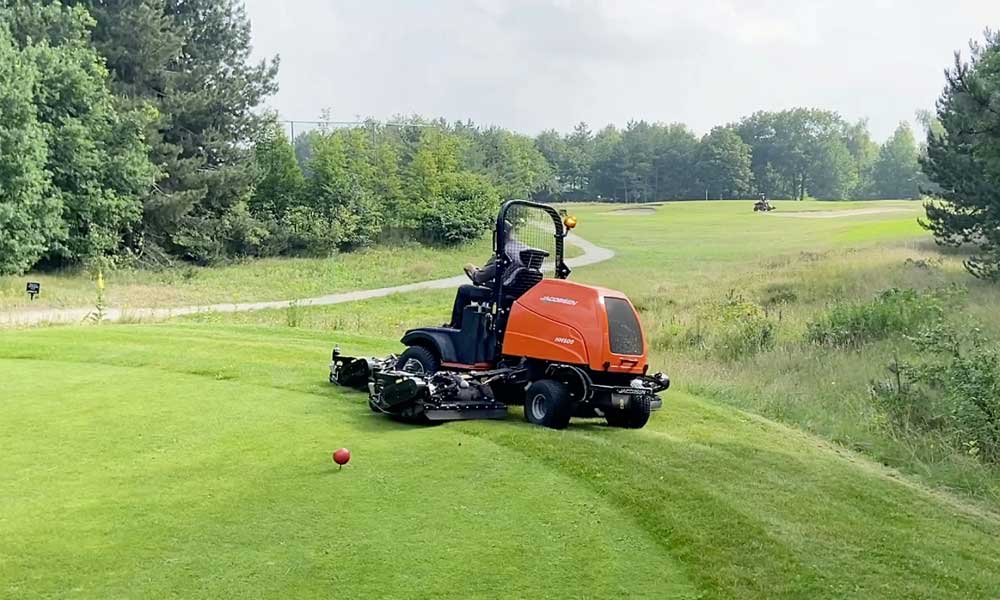

Excellent Traction Drive
The hydrostatic, automatic on-demand cross-flow 4WD system provides excellent manoeuvrability and superior stability. Consistent power distribution to all wheels ensures a uniform cut and efficient operation even in challenging conditions. Want to experience this for yourself? Reach out to your nearest dealer.

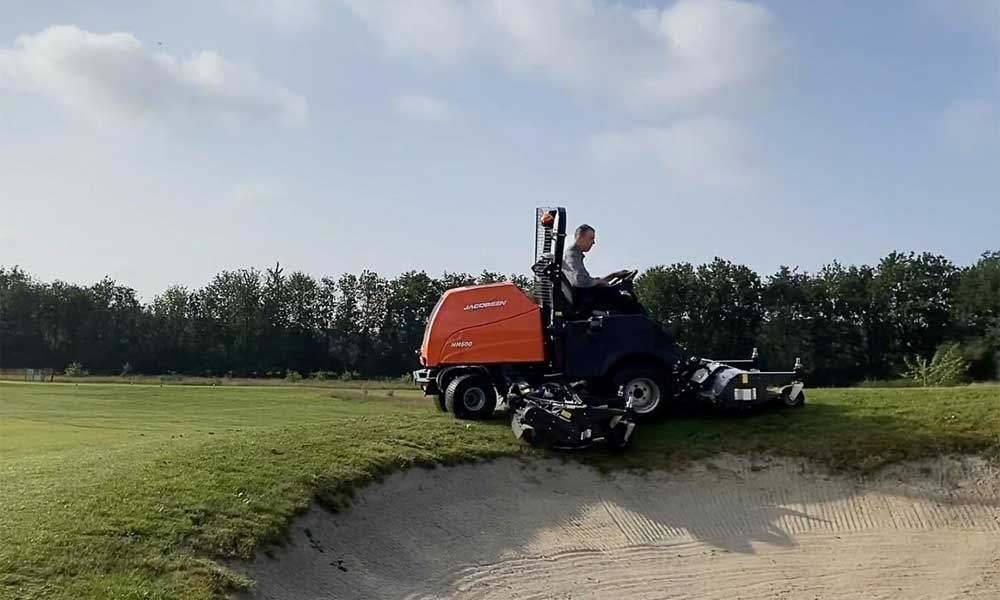

High Quality After-Cut Appearance
Experience the power of the HM600 with precision cutting, robust design, efficient grass clipping distribution, and an advanced traction system.
Request a Demo
See our products in action for a closer experience of the amazing capabilities on offer for all your turf requirement.
See the HM600 in Action
Technical Specs
Mower Cutting Width: 126″ (3.2 m)
Mower Height of Cut: 1.2 – 2.8″ (30 – 70 mm)
Cutting Units: 1 x 63″ (160 cm) front flail unit, two 39″ (100 cm) wing flails; 12.5″ (30 cm) working diameter
Mower Engine: Kubota V2403 4-Cylinder, turbo diesel 65.2 HP (48.6 kW)
Cutting Capacity: 8.5 acre/hr at 7.5 mph (3.46 ha/hr at 12 kph)
Fuel/Battery Capacity (+Run Time): 20.4 gal. (77.1 L)
Transport Speed: 15 mph (25 kph)
Number and Size: 1 x 63″ (160 cm) front flail unit, two 39″ (100 cm) wing flails; 12.5″ (30 cm) working diameter
Blade Material: M Type heavy duty Carbide Flails with shark fin shredding bar for optimum spread and mulching of clippings. High strength structural steel hood with replaceable wear plate. Spring steel projectile guards. Bolt on carbide wear skids
Cutting Unit Lift: Fingertip operated joysticks for individual unit lift/lower; cross cut position. Electronic transport locks
Traction Drive: Hydrostatic, automatic on-demand cross-flow 4WD in forward and on-demand in reverse
Reel Drive: Three dedicated cutter pumps to hydraulic motors with mechanical dual V belt final drive
Hydraulic System: 13.3 gal. (50.2 L) capacity regulated with side by side cooler
Service Brakes: Dynamic braking through hydrostatic traction system
Parking Brakes: Zero-maintenance electro-hydraulic wet parking brakes
Steering: Hydraulic power steering with adjustable tilt steering wheel
Mowing Speed: 10 mph (16.4 kph) electronically adjustable
Reverse Speed: 4 mph (6.4 kph)
Weight: 4,429 lbs. (2,009 kg), 4,808 lbs. (2,181 kg) with cab
Length (less catchers): 148″ (3.76 m) front deck down
Overall Height (including ROPS): 83″ ROPS up; 67″ ROPS and decks down; 87″ with cab (2.11 m ROPS up; 1.70 m ROPS and decks down; 2.2 m with cab)
Wheel Base: 65″ (1.65 m)
Transport Width: 83” (2.1 m)
Working Width: 137″ (3.5 m) with Muthing® flail units down
