Greens Mowers
Eclipse 360 ELiTE
Lithium Ride-on Reel Mower
Key Features

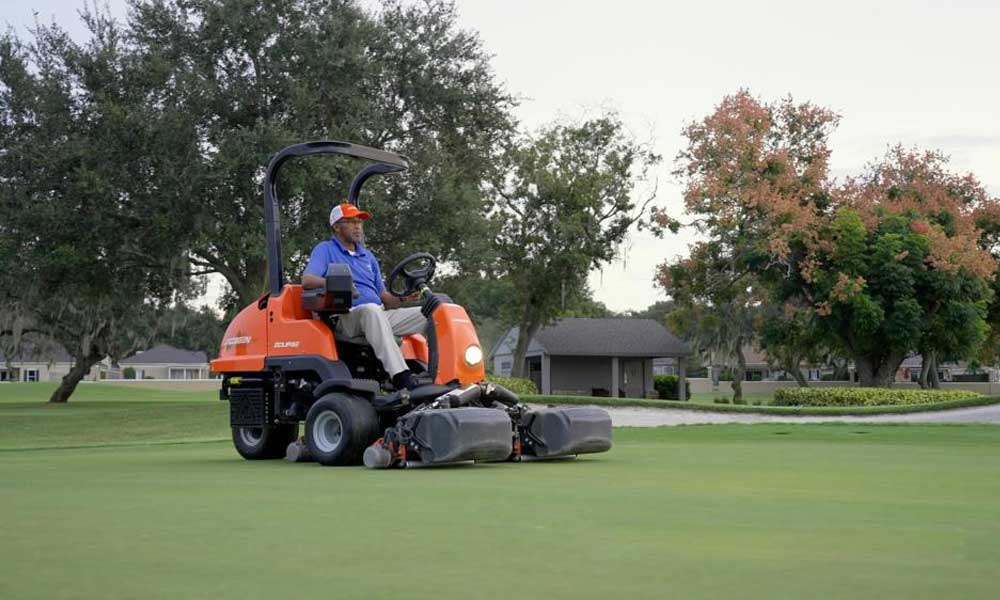

ELiTE Lithium Powertrain
250 Ah ELiTE lithium battery, powered by Samsung SDI technology provides power for a consistent cut on every turn.

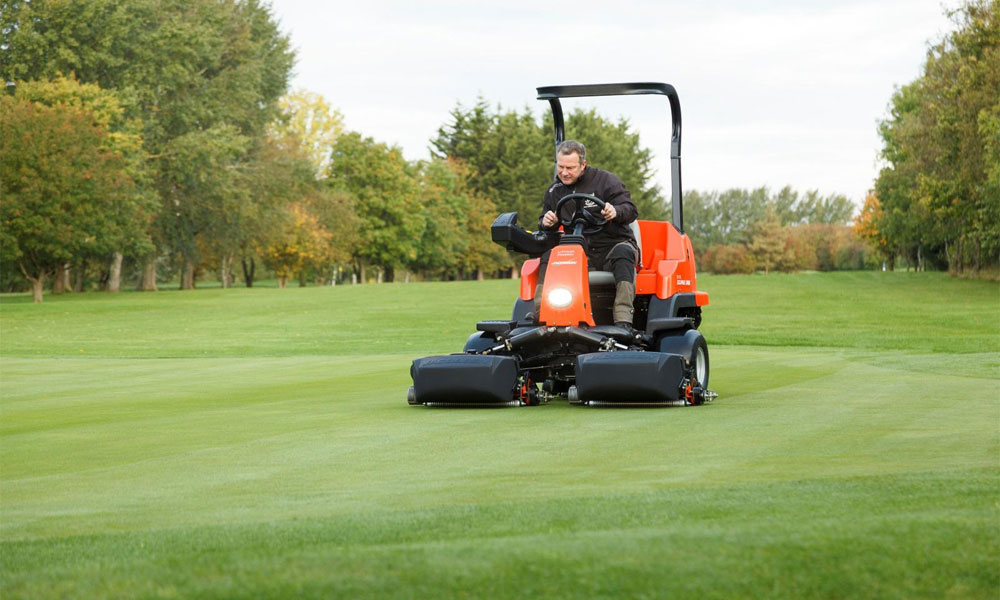

Unique Cutting Unit
Unique swing out center cutting unit for ease of service.

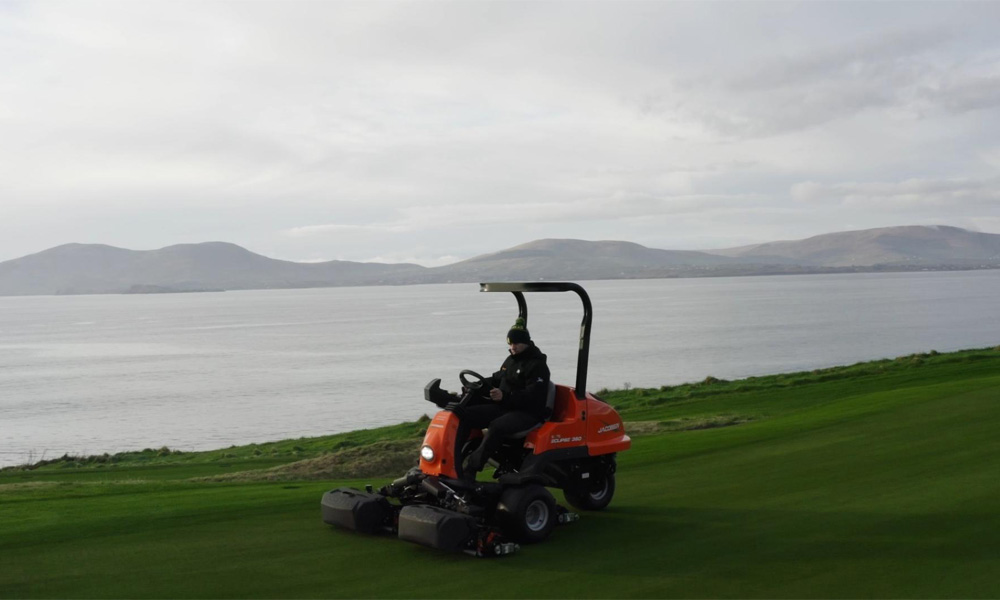

Precision Cutting
Consistent frequency of cut, regardless of operator.
Peace of Mind
No hydraulic oil, battery maintenance or exhaust fumes.

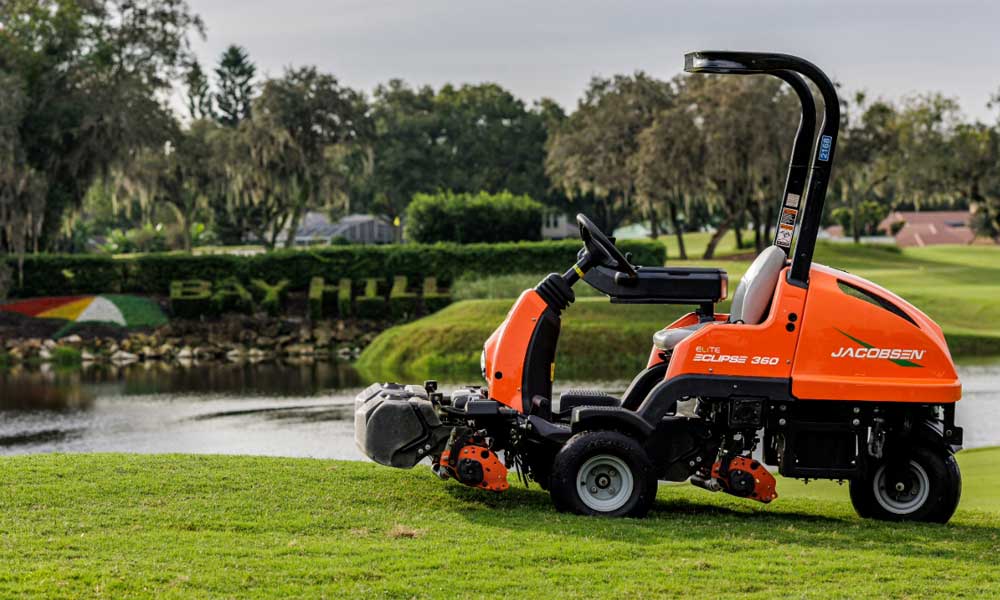

Elite Lithium Powertrain
ELiTE lithium batteries, powered by Samsung SDI technology are proven with over 15 million hours of proven field experience, guaranteeing superior quality and peace of mind with our 5-year battery pack warranty.

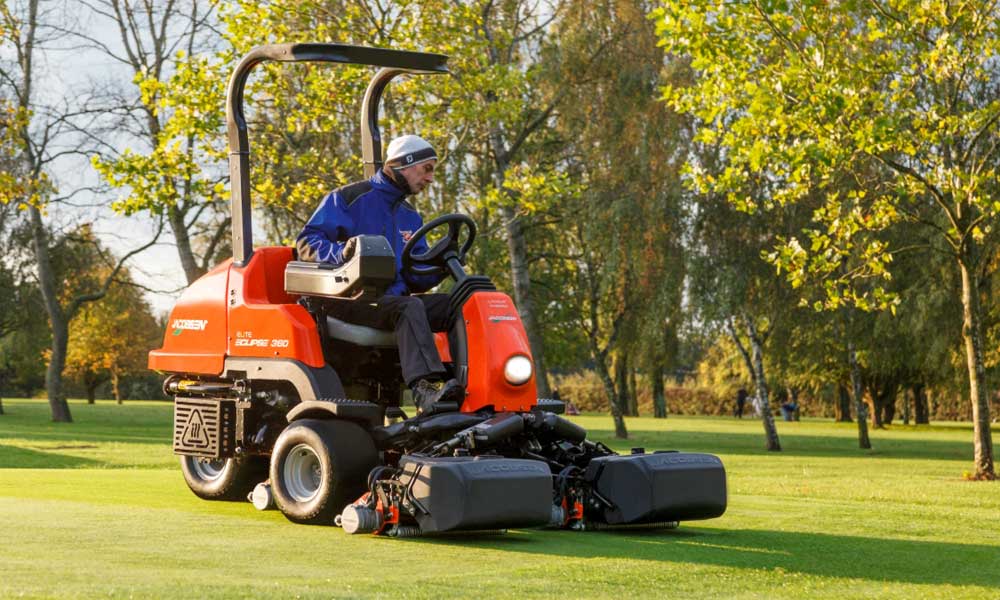

More Dependable
When compared to lead acid, ELiTE lithium batteries, powered by Samsung SDI technology, require no battery maintenance and provide a consistent flow of power. As a result, reduced power spikes make the Eclipse 360 ELiTE one of Jacobsen’s most dependable machines.
Classic XP Reels with TrueSet
Experience the durability and precision of Classic XP Reels with TrueSet. These reels feature a welded frame that allows for a choice of smooth, grooved, steel, or aluminum rollers. Enjoy easy reels-to-bed knife adjustment from the front with over 192kg of holding force, and a simple height of cut adjustment with just one spanner. Plus, tapered roller bearings ensure long-lasting performance.
Request a Demo
See our products in action for a closer experience of the amazing capabilities on offer for all your turf requirement.

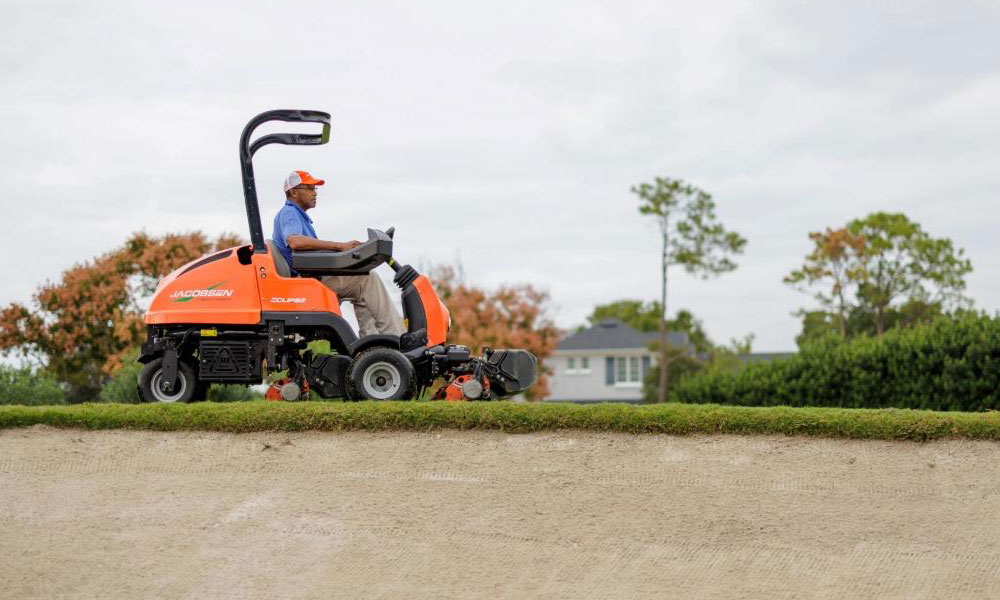

See the Eclipse 360 ELiTE in Action
Technical Specs
Mower Cutting Width: 62″ (1.6 m)
Mower Height of Cut: 0.062 – 0.438″ (1.6 – 11.1 mm)
Blades per Reel: 7, 9, 11 or 15
Fuel/Battery Capacity (+Run Time): Lithium Battery – 250 Ah lithium pack, 12.2 kW/hrs.
Mower Engine: Lithium Battery with onboard charger
Cutting Capacity: Cut 143K sq. ft (12,449 sq. m) of greens + 6 miles (9.65 km) of transport with groomers and brushes installed
Number and Size: 3 x 22″ (55.88 cm) reels; 5″ (127 mm) diameter
Blade Material: Hardened, high manganese carbon steel
Cutting Unit Lift: New Long Life linear actuator
Cutting Frequency: 0.036 – 0.250″ (0.91 – 6.35 mm) with 15 blade reel, electronically adjustable
Traction Drive: Front / 2WD – AC; 4.4 HP (3.3 kW) continuous (Optional 3WD – PM; 3.2 HP (2.4 kW))
Reel Drive: One brushless DC motor per reel 1.3 HP (0.97 kW) continuous
Hydraulic System: No Hydraulic Oil
Service Brakes: Dynamic regenerative braking system
Parking Brakes: Automatic electro-magnetic multi-plate
Steering: Variable ratio Drive-by-wire steering with feedback control
Mowing Speed: 0 – 5.0 mph (0 – 8.9 kph); electronically adjustable max speed
Transport Speed: 0 – 9.0 mph (0 – 14.5 kph) electronically adjustable max speed
Tires: 18 x 10.5 x 8 4-ply
Weight: 1,598 lbs. (725 kg) with groomers, rear roller brushes, grass boxes and 15 blade reels, charger and aluminum front rollers
Length (less catchers): 101″ (2.56 m) (with Catchers)
Overall Height including ROPS: 79.3″ (2.01 m)
Wheel Base: 52″ (1.32 m)
Transport Width: 67.7″ (1.72 m)
Working Width: 67.7″ (1.72 m)
