Rough & Trim Mowers
TR320
High Traction Contour Trim Mower
Key Features

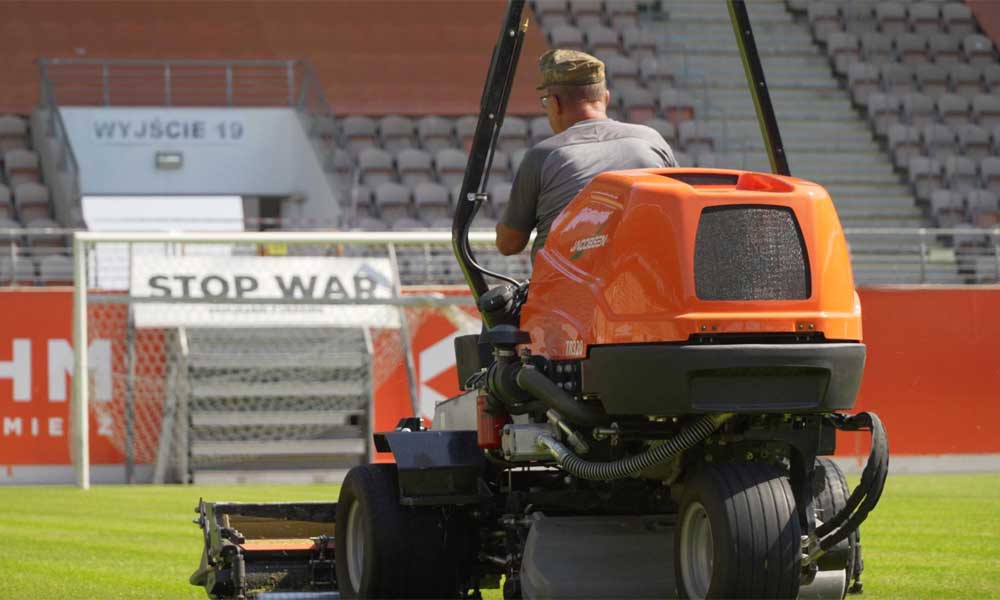

Contour Following
The TR320 is equipped with contour-following capabilities that allows the cutting units to independently float and follow the undulations of the terrain.
Wet Parking Brake
With wet parking brakes that are completely maintenance-free, the TR320 eliminates the need for regular brake maintenance while still ensuring safety and security.

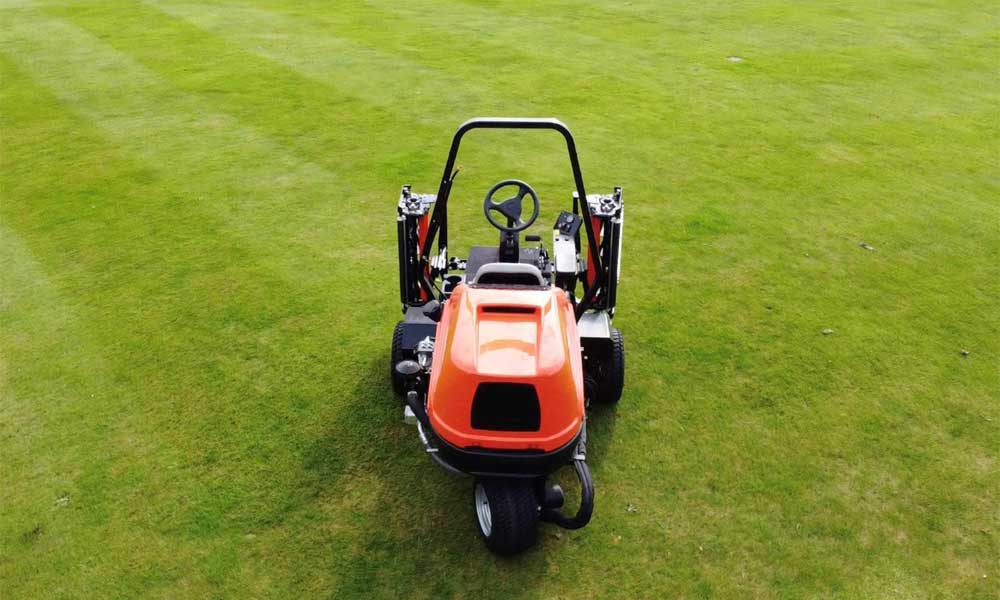

Hydraulic Power Steering
The TR320 features hydraulic power steering to enhance maneuverability and operator comfort.

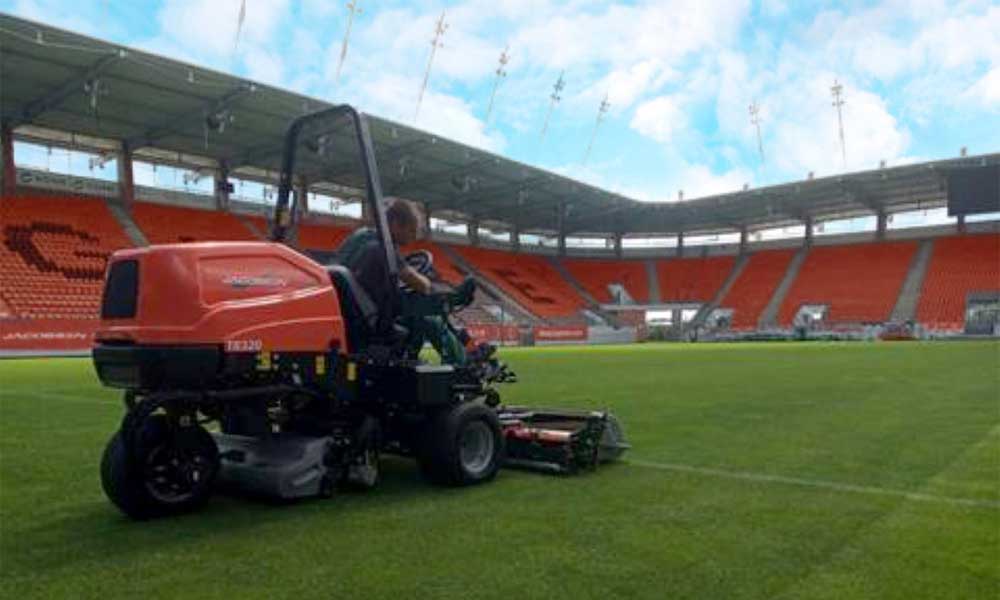

Ease of Access
Quick and convenient maintenance are key to keeping downtime low, and the TR320 has an easy-access hood that allows streamlined routine checks.

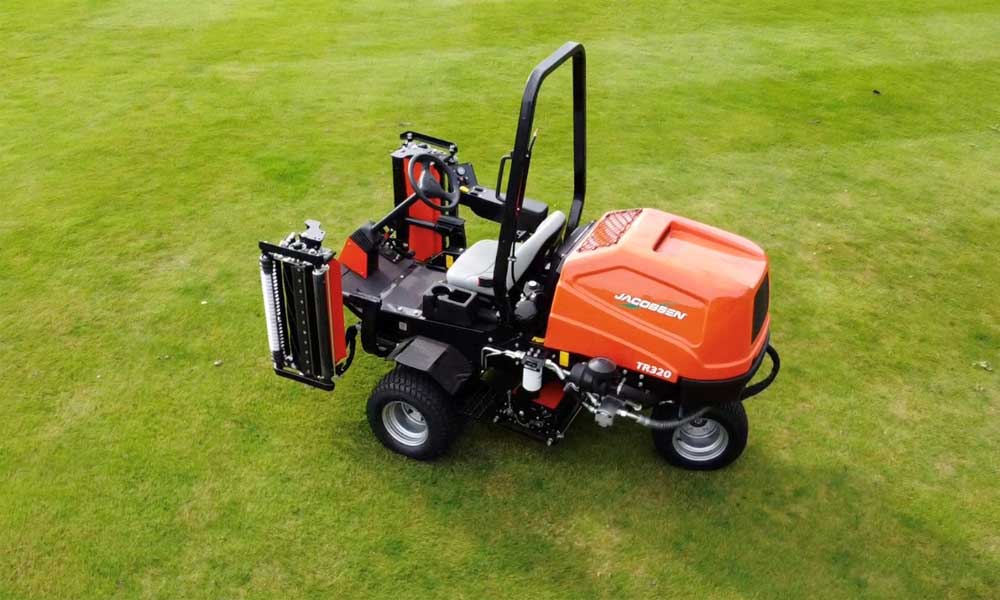

Trustworthy Diesel Engine
Powered by a 24.8 HP (18.6 kW) diesel engine, the TR320 has the power to handle various mowing conditions regardless of weather. This engine is designed to match the long-lasting power of the TR320.

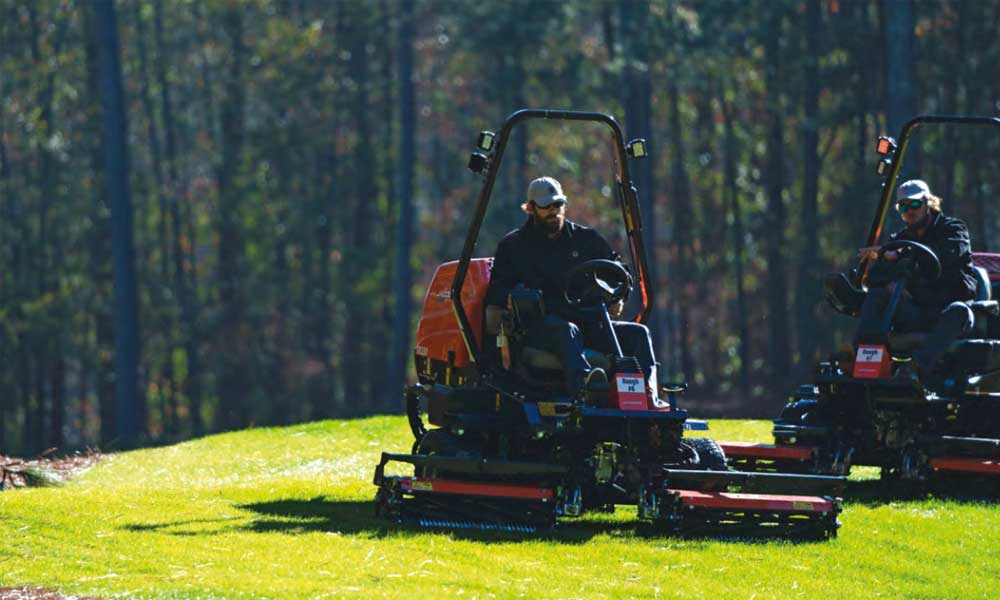

Narrow Transport and Storage
The TR320’s narrow transport and storage width makes it easy to navigate through tight spaces and stand out among the competition. In addition, this narrow design does not compromise the cutting width, with the option of having either a 72- or 84-inch (1.83 or 2.13 m) width for efficient mowing operations.
Customisable Accessories
A range of customizable accessories are offered on the TR320 that can be added to further enhance its functionality, including slick tires, verticutting reels, grass baskets, canopies, and more. Contact your local dealer to learn more about the accessories the TR320 can use.
A Quality Cut
The TR320 provides a quality cut, with adaptability to conform wherever you need. Confidence on the cut in any terrain and weather is key to turf care, request a quote and start your Jacobsen journey today.
Request a Demo
See our products in action for a closer experience of the amazing capabilities on offer for all your turf requirement.
See the TR320 in Action
Technical Specs
Mower Cutting Width: 72″ or 84″ (1.83 m or 2.13 m)
Mower Height of Cut: 0.37 – 2.75″ (9.5 – 69.8 mm)
Blades per Reel: 5, 7 or 11
Fuel/Battery Capacity (+Run Time): 7.6 gal. (28.7 L)
Mower Engine: 24.8 HP (18.6 kW) Diesel
Cutting Capacity: 4.5 – 5.3 acres (1.83 – 2.13 hectare) / hr
Number and Size: 3 x 26″ (66.0 cm) or 30″ (76.2 cm) reels; 7″ (17.8 cm) diameter
Blade Material: Hardened, high manganese carbon steel
Cutting Unit Lift: Armrest mounted switch
Traction Drive: Parallel-series “on-demand” 3WD
Reel Drive: Fixed displacement hydraulic
Hydraulic System: 8.7 gal. (33 L) capacity, full flow filtration (10 micron filter); GreensCare biodegradable oil
Service Brakes: Dynamic braking through hydrostatic drive
Parking Brakes: Service-free electronic wet disc
Steering: Hydraulic power steering with tilt wheel
Mowing Speed: 6.2 mph (10 kph)
Transport Speed: 8.7 mph (14 kph)
Weight: 1,647 – 2,281 lbs. (747 – 1,035 kg)
Length (less catchers): 97″ (2.46 m)
Overall Height including ROPS: 80″ (2.04 m)
Wheel Base: 43.5″ (1.36 m)
Transport Width: 65.5″ (1.66 m)
Working Width: 83″ (2.11 m)
