Rough & Trim Mowers
HR600
Large Area Rotary Mower
Key Features

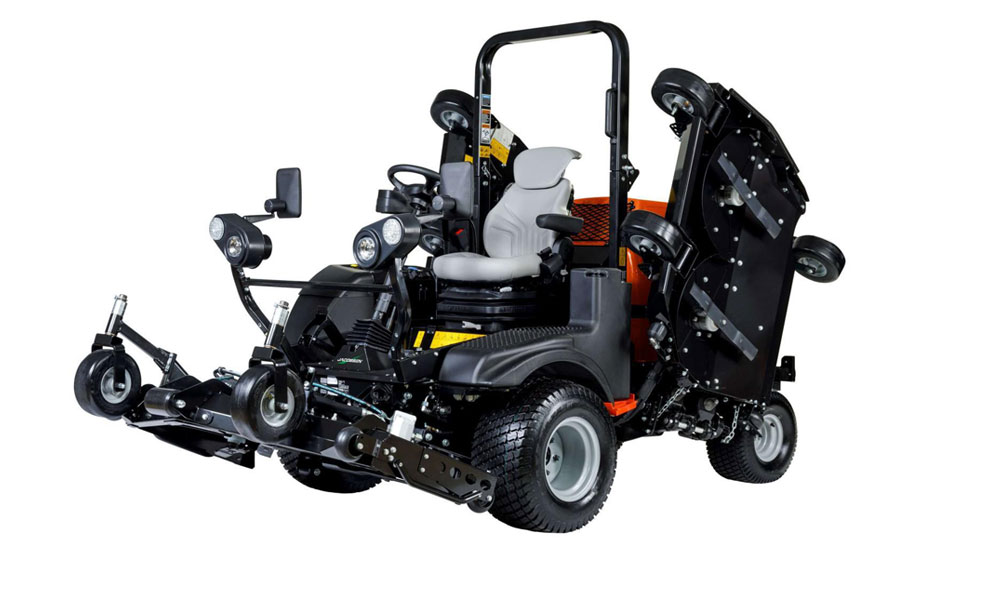

Operator Comfort
Designed for long hours of operation, this machine features a fully adjustable high-back suspension seat and unobstructed, armrest mounted controls.

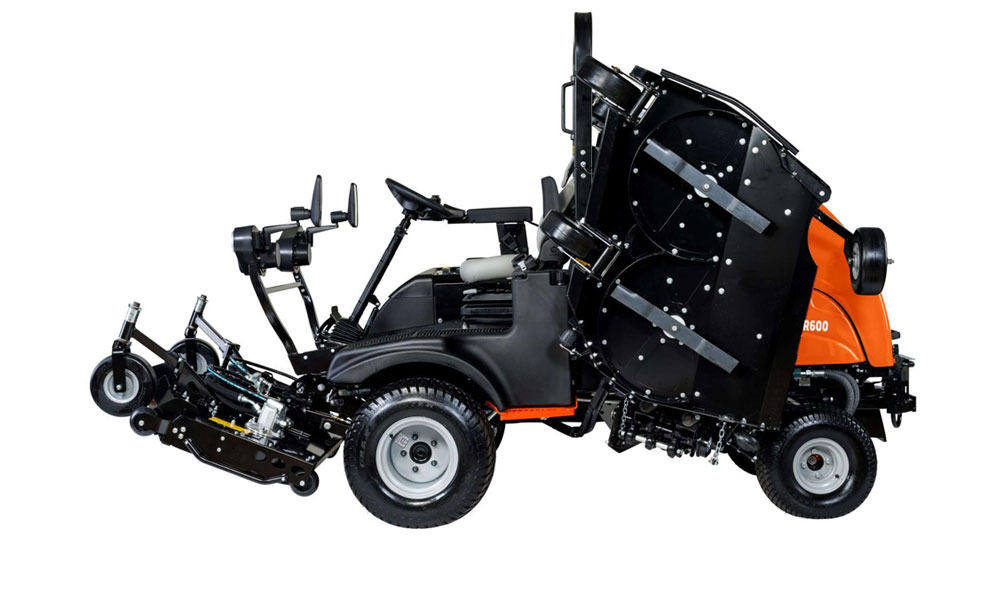

Easy-Maintenance Decks
The HR600 contains three direct drive hydraulic decks with no belts, covers, or pulleys to maintain. The wearing parts are all bolted on and easily replaceable for easy maintenance.
Tilt Sensory Technology (TST)
Automatic detection with Jacobsen’s Tilt Sensory Technology continuously monitors the angle of the machine and provides warnings if it shifts beyond a safe threshold.

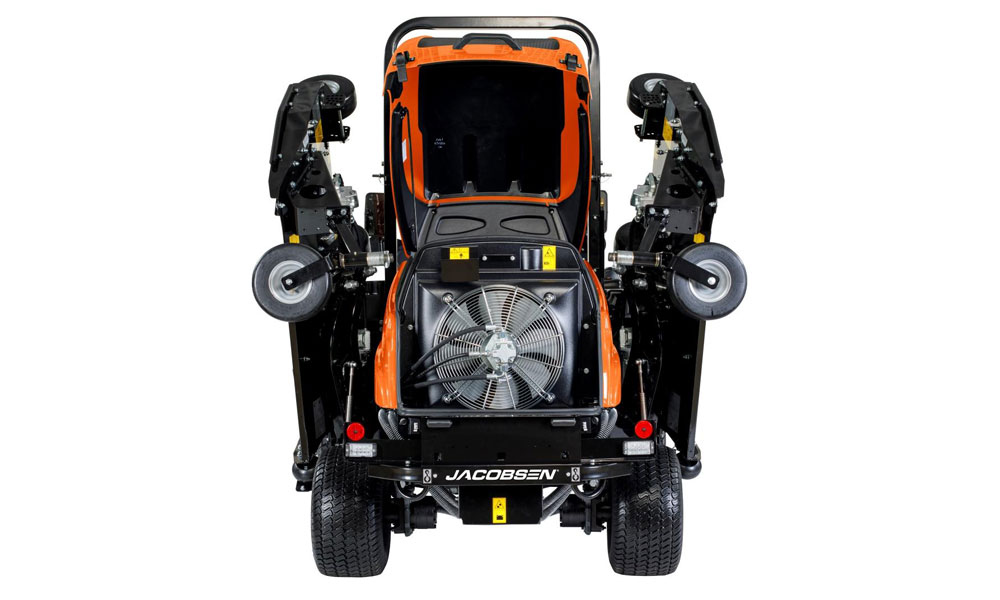

Reversing Fan
The Kubota Engine Stage V features a timed or manual reversing fan to ensure grass doesn’t get in the way of a cut.

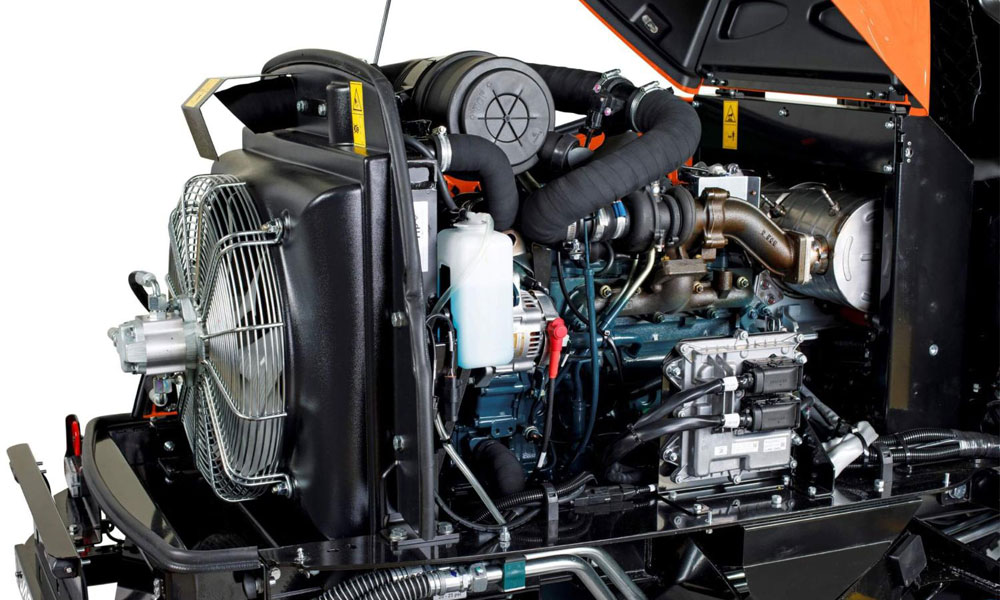

Diesel-Powered Drivetrain
Powered by a 65.2 HP Kubota Diesel Engine Stage V, the HR600 features external and indicator-equipped filters for ease of use. This engine holds up to 77.1 litres (20.4 gallons), ensuring long operational periods without refuelling.

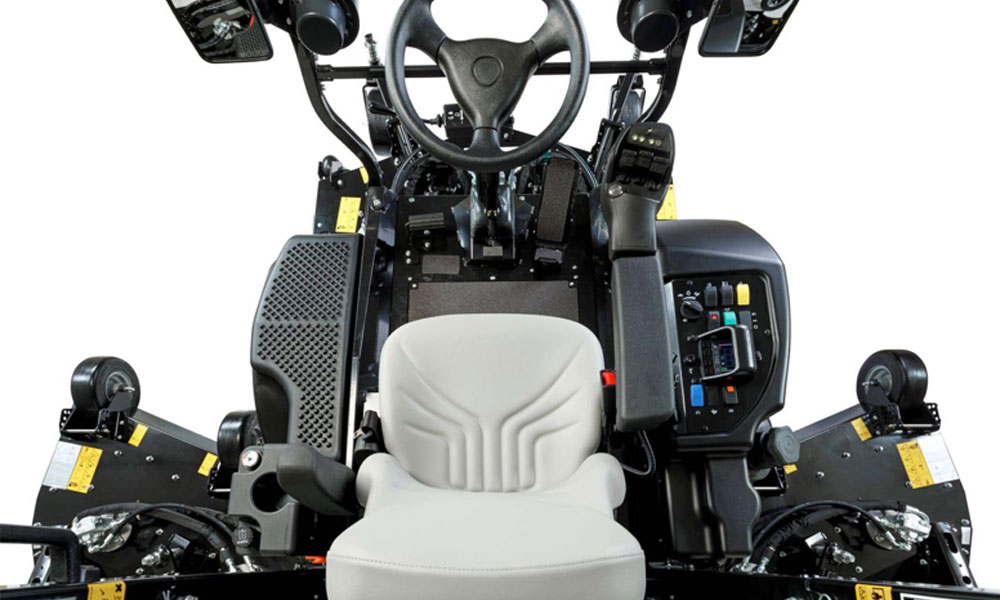

ISO-Mounted Platform
The ISO-mounted platform significantly reduces vibrations and shocks to the operator, maintaining high productivity levels throughout the workday.
Multi-Deck Capabilities
The HR600 can be used with 1, 2, or 3 decks, allowing for maximum adaptability based on terrain. Narrow passages can be cut with one deck down, where larger areas can make use of all three.
Join the Charge
Versatility and efficiency have never been more accessible. Get the HR600 and experience its triple deck mowing power.
Request a Demo
See our products in action for a closer experience of the amazing capabilities on offer for all your turf requirement.
See the HR600 in Action
Technical Specs
Mower Cutting Width: 137″ (3.5 m)
Mower Height of Cut: 1 – 4.75″ (25 – 121 mm) in 0.25″ (6.4 mm) increments
Mower Engine: Kubota 65.2 HP (48.6 kW) Turbo Diesel
Cutting Capacity: 13.8 acres/hr at 10 mph (5.6 ha/hr at 16 kph)
Transport Speed: 15.5 mph (25 kph)
Fuel/Battery Capacity (+Run Time): 20.4 gal. (77.1 L)
Number and Size: 1 x 60″ (152 cm) front deck; 2 x 44″ (112 cm) wing units
Blade Material: MARBAIN® boron alloy steel
Deck Lift/Lower: Individual via fingertip operated joysticks
Weight Transfer: On demand electrically operated hydraulic weight transfer system
Deck Construction: 11 gauge (3 mm) Strenx, high strength steel shell
Traction Drive: Hydrostatic closed loop parallel-cross-series SureTrac™ system
Deck Drive: Seven individual hydraulic motors with self lubricating integral bearings
Hydraulic System: 13.3 gal. (50.2 L) reservoir with 10 micron remote charge filters and suction screening at tank. Oil cooler in side by side radiator
Service Brakes: Dynamic through hydrostatic traction system
Parking Brakes: Automatic wet parking brakes integrated into wheel motors
Steering: Power Steering
Mowing Speed: 10 mph (16.4 kph)
Reverse Speed: 4 mph (6.4 kph)
Tires: Front Tires: 26 x 12-12 tubeless 8 ply. Rear Tyres :20 x 10-8 tubeless 6 ply
Weight: 3,873 lbs (1,756 kg) with ROPS, 4,356 lbs. (1,976kg) with cab
Length: 143″ (3.62 m) front deck down
Height (Rops Up): 83″ (2.1 m)
Wheel Base: 64″ (1.65 m)
Transport Width: 65″ (1.67 m)
Working Width: 143″ (3.63 m)
Fluid Capacities: Coolant Sytem and Capacity: Side-by-side radiator/hydraulic oil cooler; pressurized; 2 gal. (7.6 L) capacity, 8.5 fins per inch
